Fascia top rail

Refit

1. Fit new studs as necessary to trim casing and ensure all studs are slotted fully into position.
2. Position trim casing to door, align studs and press to engage on door.
3. Position door pocket to door and secure with screws.
4. Fit door interior release handle and secure with screw.
5. Fit interior door lock escutcheon an secure to trim casing.
6. Position door pull and secure with screws.
7. Fit screw covers to door pull.
8. Fit handle and bezel to door glass regulator and tighten screw.
9. Fit screw cover to door glass regulator handle.
10. Fit wooden finisher to door. See this section.

FASCIA TOP RAIL

Service repair no - 76.46.04

Remove

1. Remove windscreen. See Screens.
2. Remove fascia panel. See this section.

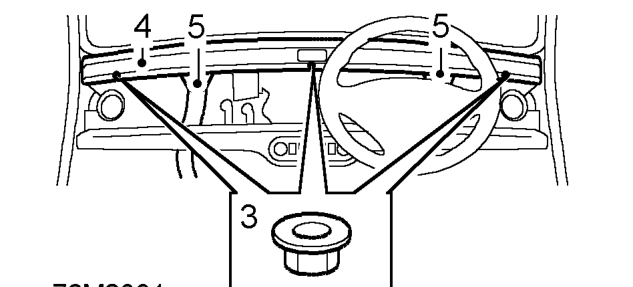

3. Remove 3 nuts securing fascia rail to body and release rail.
4. Remove fascia rail.
5. Remove demister ducts from fascia rail.

Refit

1. Fit demister ducts to fascia rail.
2. Position fascia rail to body, fit nuts and tighten to 9 Nm.
3. Fit fascia panel. See this section.
4. Fit windscreen. See Screens.
