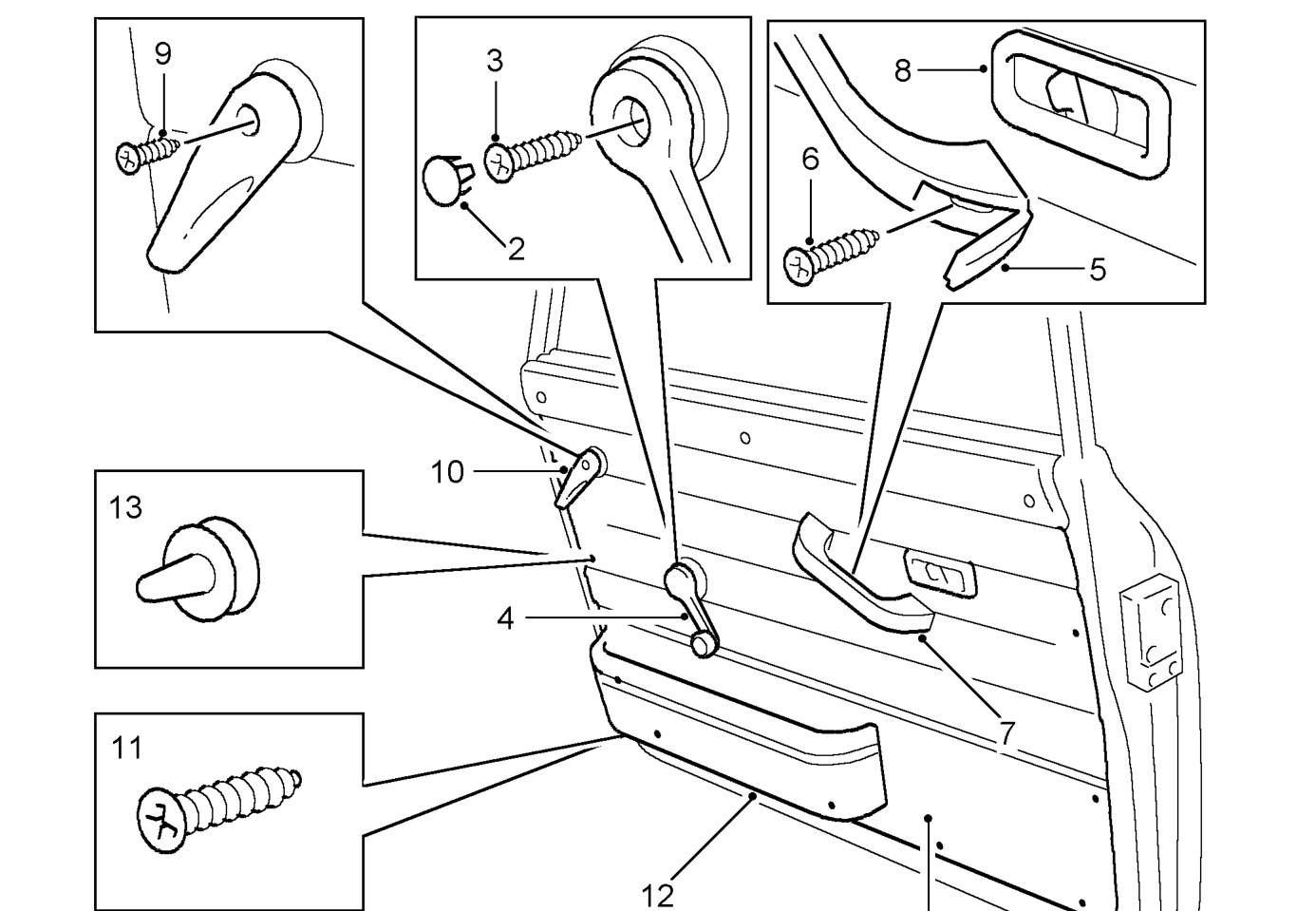

Door trim casing

DOOR TRIM CASING

Service repair no - 76.34.01

Remove

1. Remove wooden finisher from door. See this section.
2. Remove cover from door glass regulator handle.
3. Remove screw securing handle to door glass regulator.
4. Remove door glass regulator handle and bezel.
5. Release screw covers from door pull.
6. Remove 2 screws securing door pull to door.
7. Remove door pull.
8. Remove interior door lock escutcheon from trim casing.
9. Remove screw securing door interior release handle.
10. Remove door interior release handle.
11. Remove 5 screws securing door pocket to door.
12. Remove door pocket from door.
13. Carefully release 9 studs securing trim casing to door.
14. Remove door trim casing.
