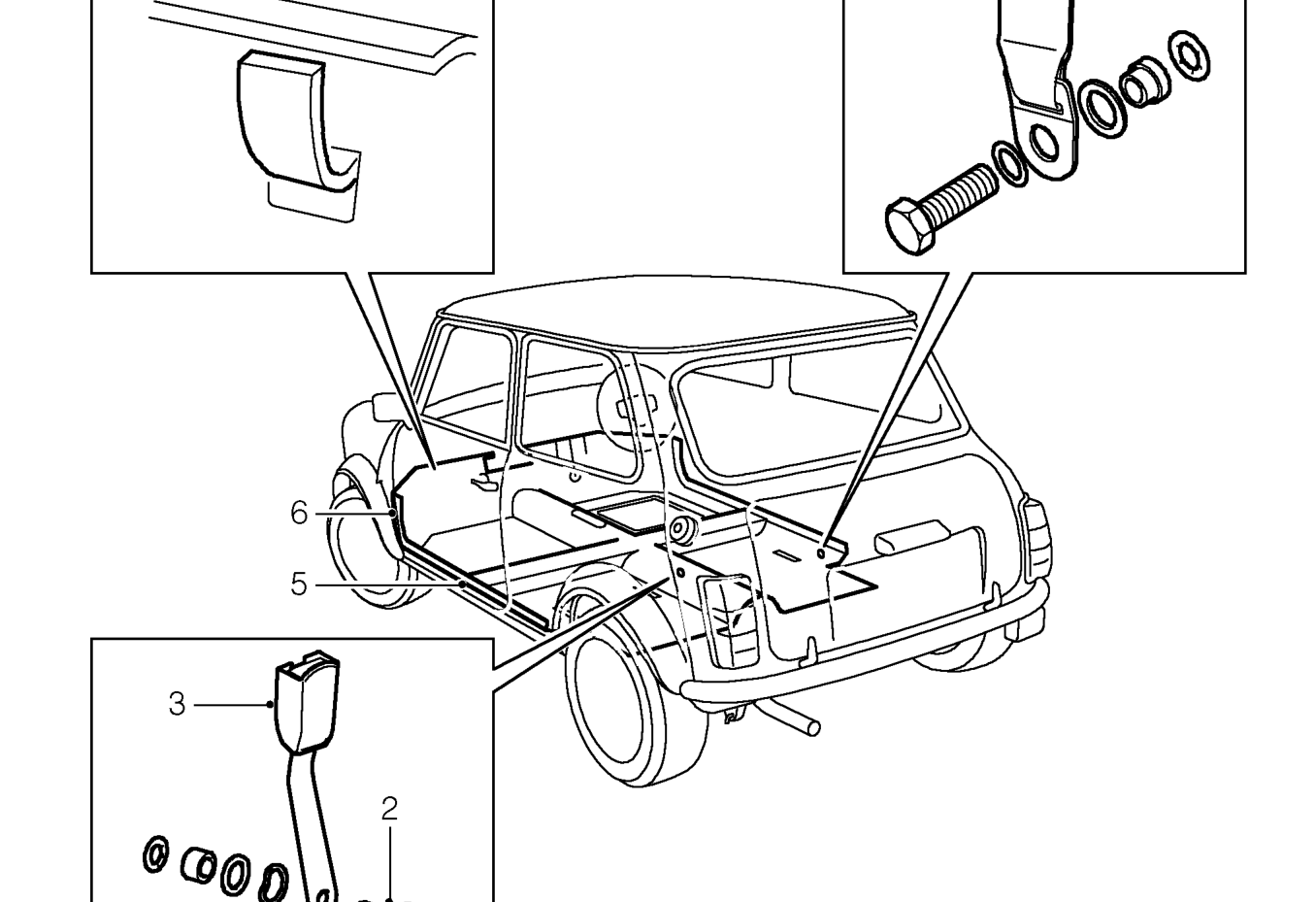

Carpet

CARPET

Service repair no - 76.49.12

Remove

1. Remove both front seats. See Seats and seat belts.
2. Remove 2 bolts securing front seat belt stalks to body.
3. Remove front seat belt stalks, collect washers.
4. Remove bolts securing front seat belt lower anchorage points to body, collect washers.
5. Release carpet from door seals, and bulkhead retainers.
6. Ease carpet from around foot pedals, gear lever and handbrake lever and remove carpet.

Refit

1. Position carpet in vehicle and fit around pedals, gear lever and handbrake lever.
2. Secure carpet to bulkhead with retaining clips.
3. Secure carpet under door seals.
4. Align front seat belt lower anchorage points to body, position washers, position washers, fit bolts and tighten to 30 Nm.
5. Position front seat belt stalks to body, fit bolts and tighten to 30 Nm.
6. Fit front seats. See Seats and seat belts.
