ClutchThrow-out stop clearance

THROW-OUT STOP CLEARANCE

Service repair no - 33.25.03

Check and Adjust

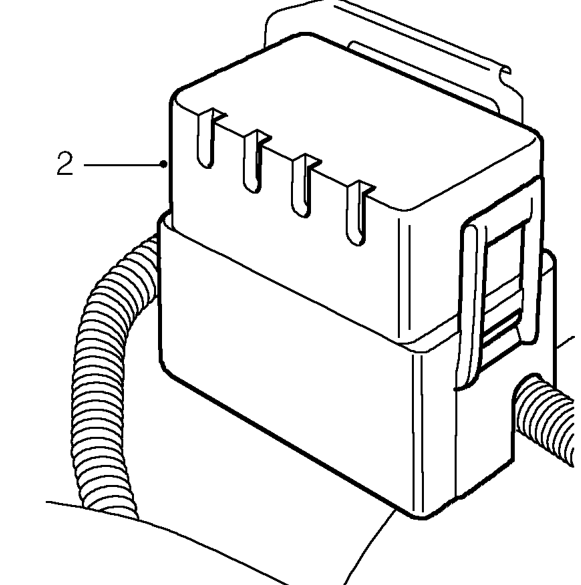

  1. Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Check and adjust – Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

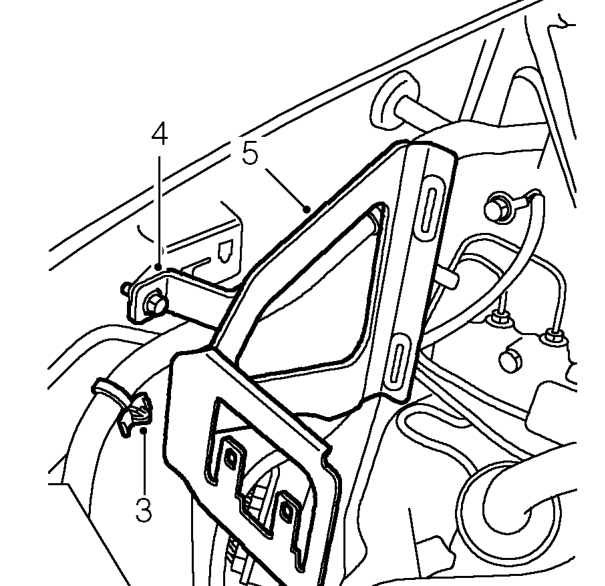

  1. Release engine compartment fuse box from ECM mounting bracket.
Check and adjust – Release engine compartment fuse box from ECM mounting bracket.
  1. Release clip securing main harness to ECM

mounting bracket.

  1. Remove bolt securing ECM mounting bracket to body.
  2. Release ECM mounting bracket from body and remove.
  3. Depress clutch pedal to load clutch lever and remove any free play.
