Jacking, supporting and towing

JACKING, SUPPORTING AND TOWING

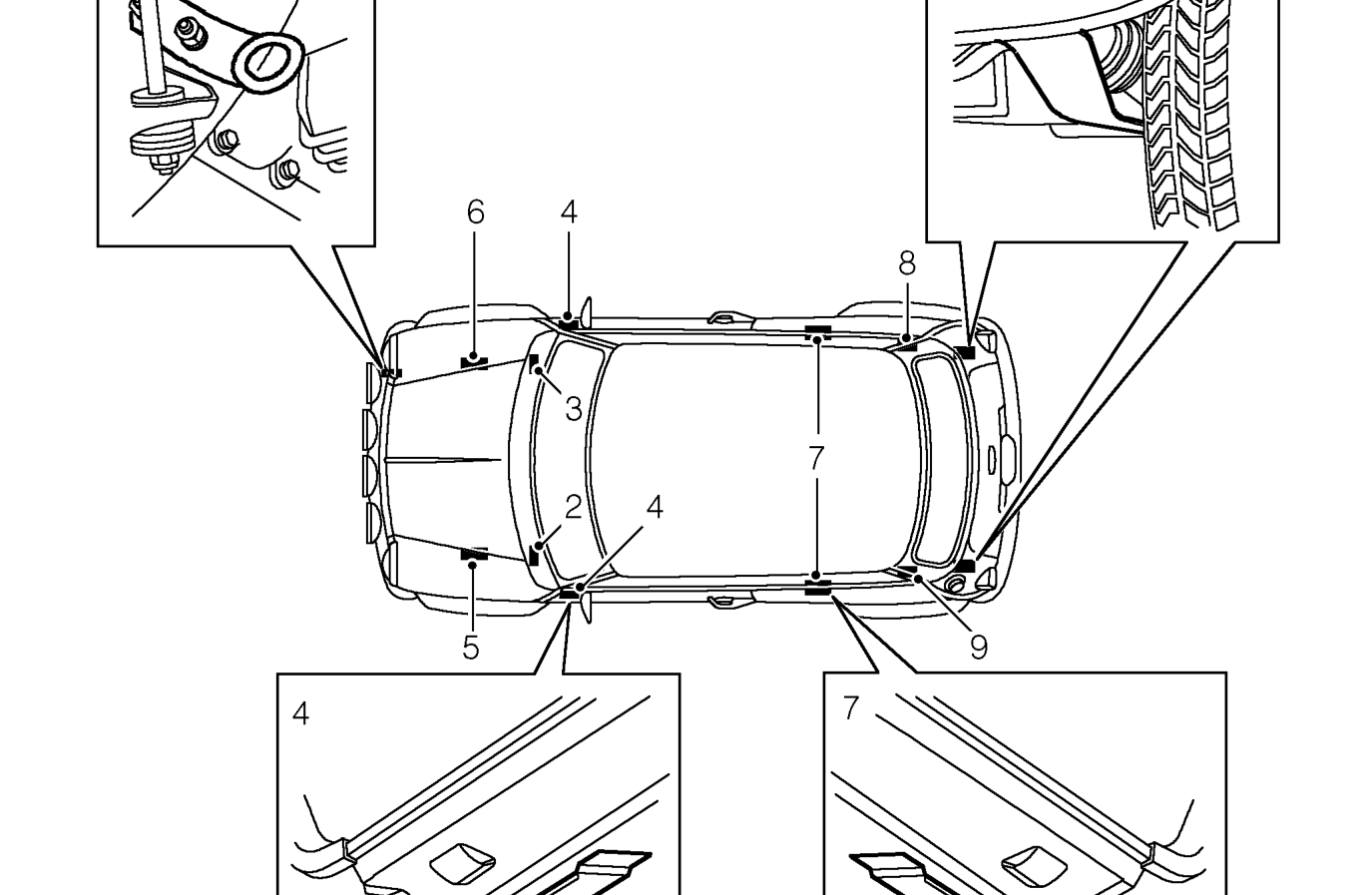

Jacking and support points

1. Lashing/towing eye - front
2. LH floor front reinforcement
3. RH floor front reinforcement
4. Sill reinforced brackets - front
5. LH subframe longitudinal - front

WARNING: In accordance with normal workshop practice and to avoid the possibility of damage or personal injury, work must not be carried out on or under a vehicle when it is supported solely on a jack. Place safety supports under the sill reinforced brackets (4 and 7).

6. RH subframe longitudinal - front
7. Sill reinforced brackets - rear
8. RH subframe longitudinal - rear
9. LH subframe longitudinal - rear
10. Lashing eye - rear

WARNING: Do not position a jack, jack stand or wheel free support under the subframe transverse members.

CAUTION: Use suitable hardwood or rubber pads when jacking and supporting the vehicle.
