Handling and Storage

Handling and Storage

• Do not try to disassemble the airbag assembly or pretensioner. They have no serviceable parts. Once an airbag or pre-tensioner has been deployed, it cannot be repaired or reused.
• Do not carry a seat belt pre-tensioner assembly by the electrical lead, or allow the reel or tube to hang on the flexible link.
• Be careful that the airbag assembly receives no strong shocks; it could deploy.
• Special bolts are necessary for installing the airbag assembly. Do not use other bolts.

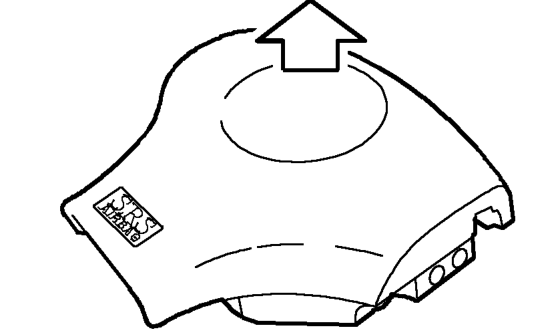

Airbag storage

For temporary storage of the airbag assembly during service, observe the following precautions:

• Always keep components dry.
• Always carry the airbag module with the pad surface face up.
• Store the removed airbag assembly with the pad surface face up.
• Do not allow anything to rest on the airbag module.
• Place the airbag module in a designated storage area.

WARNING: If the airbag is improperly stored face down, accidental deployment could propel the unit with enough force to cause serious injury.

• Store the removed airbag assembly on a secure flat surface away from any electrical equipment or high heat source (exceeding 85°C/185°F) and free of any oil, grease, detergent or water.

CAUTION: Improper handling or storage can internally damage the airbag assembly, making it inoperative. If you suspect the airbag assembly has been damaged, install a new unit and refer to the Deployment/Disposal Procedures for disposing of the damaged airbag.

Overnight storage

Airbag modules are classed as explosive articles and as such must be stored in an approved secure steel cabinet which has been registered by the local authority.

Seat belt pre-tensioner storage

For temporary storage of the seat belt pre-tensioner during service, observe the following precautions:

• Place the pre-tensioner in designated storage area.
• Store the removed pre-tensioner on a secure, flat surface away from heat, oil, grease, detergent or water.

CAUTION: Improper handling or storage can damage the pre-tensioner assembly. If damage is suspected, install a new assembly.

Overnight storage

The seat belt pre-tensioners are classed as explosive articles and as such must be stored in an approved secure steel cabinet which has been registered by the local authority.
