Front seat belt pre-tensioner

FRONT SEAT BELT PRE-TENSIONER

Service repair no - 76.73.31

WARNING: SRS safety procedures must be followed and ALL precautions observed. See Precautions. Replace pre-tensioner every 15 years.

Remove

1. Remove key from starter switch.
2. Disconnect both battery leads, earth lead first, and wait 10 minutes for the SRS back-up power circuit to discharge before commencing work.
3. Remove rear quarter companion box. See BODY, Interior trim components.

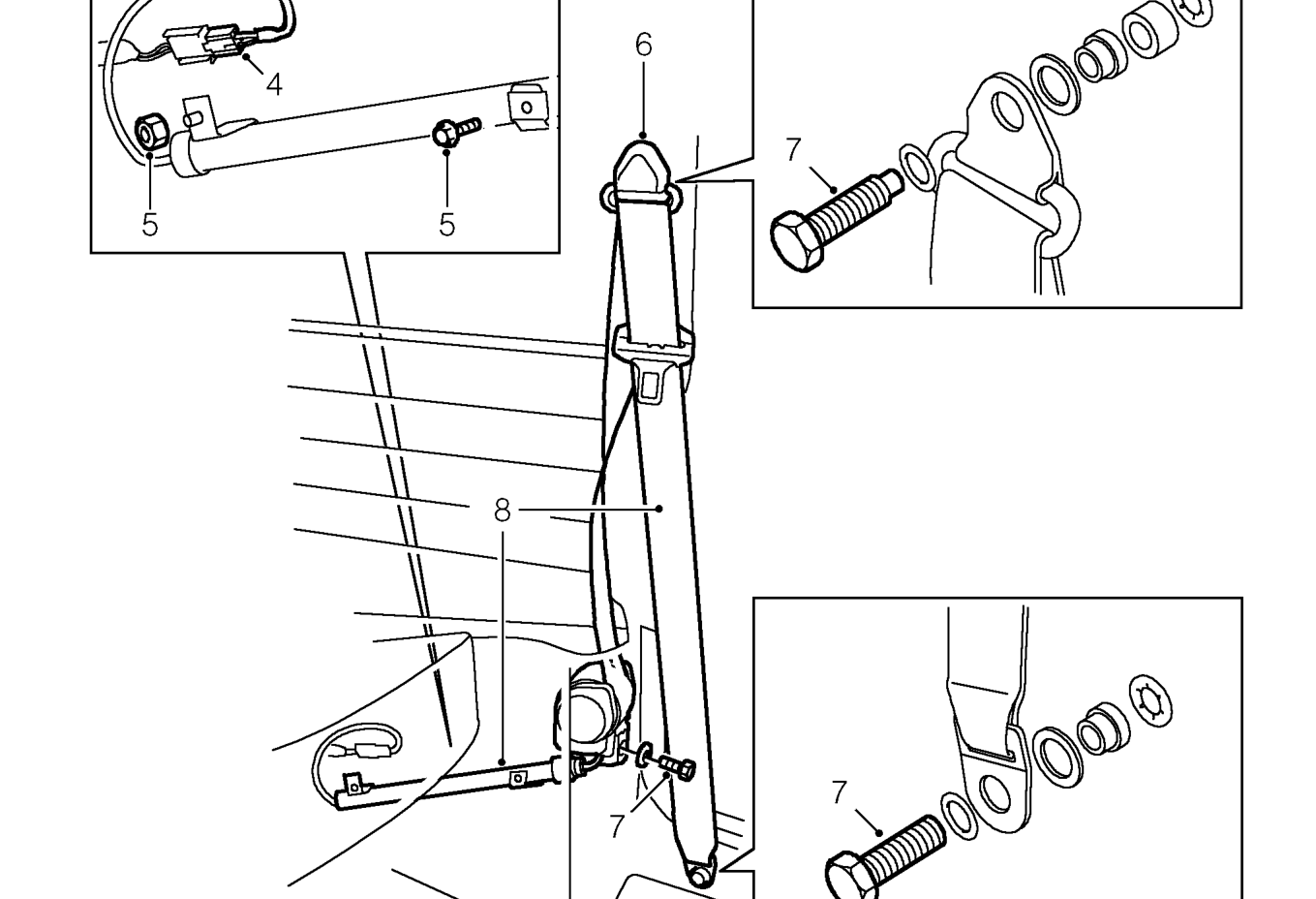

4. Release multiplug from body and disconnect pre-tensioner harness multiplug.
5. Remove nut and bolt securing pre-tensioner to body.
6. Remove cover from seat belt upper securing bolt.
7. Remove 3 bolts securing seat belt to body, collect spacers and washers.
8. Remove seat belt and pre-tensioner assembly.
