FRONT BUMP RUBBER

Service repair no - 68.15.01

Remove

  1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

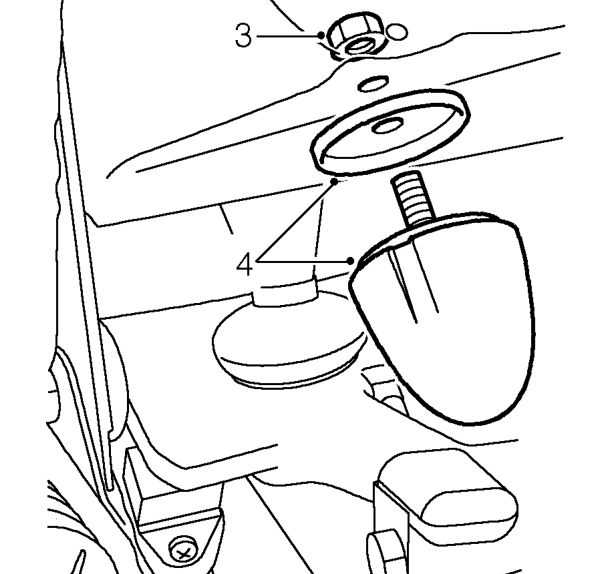

Front bump rubber – Remove road wheel(s).
  1. Using an 11mm spanner remove nut securing bump rubber to subframe.
  2. Remove bump rubber and collect spacer.

Refit

  1. Fit spacer, position bump rubber to subframe.
  2. Fit and tighten nut securing bump rubber to subframe.
  3. Fit road wheel and tighten nuts.
  4. Remove stand(s) and lower vehicle.

FRONT REBOUND RUBBER

Service repair no - 68.15.08

Remove

  1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Raise front suspension using a jack positioned beneath lower suspension arm.

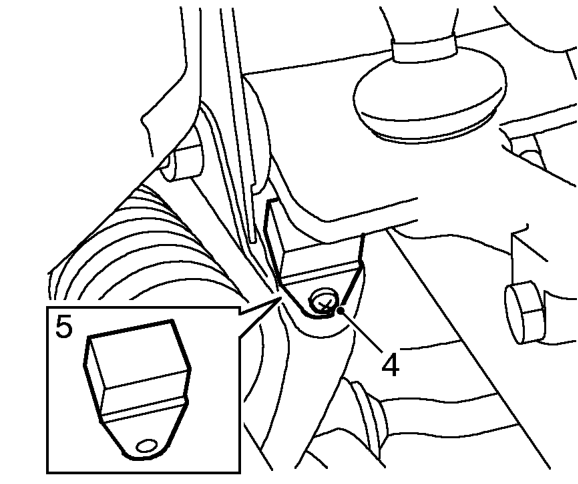

Front rebound rubber – Raise front suspension using a jack positioned beneath lower suspension arm.
  1. Remove screw securing rebound rubber to subframe.
  2. Remove rebound rubber.

Refit

  1. Position rebound rubber and secure with screw.
  2. Remove jack from beneath suspension arm.
  3. Fit road wheel and tighten nuts
  4. Remove stand(s) and lower vehicle.
