Timing Belt: Diagrams (page 5 of 8)
- Make
- Mitsubishi
- Model
- Diamante
- Engine
- V6-2972cc 3.0L SOHC
- Year
- 1992
- Section
- Timing Belt
MaintenanceDiagrams · page 5 of 8
SERVICE POINT OF INSTALLATION

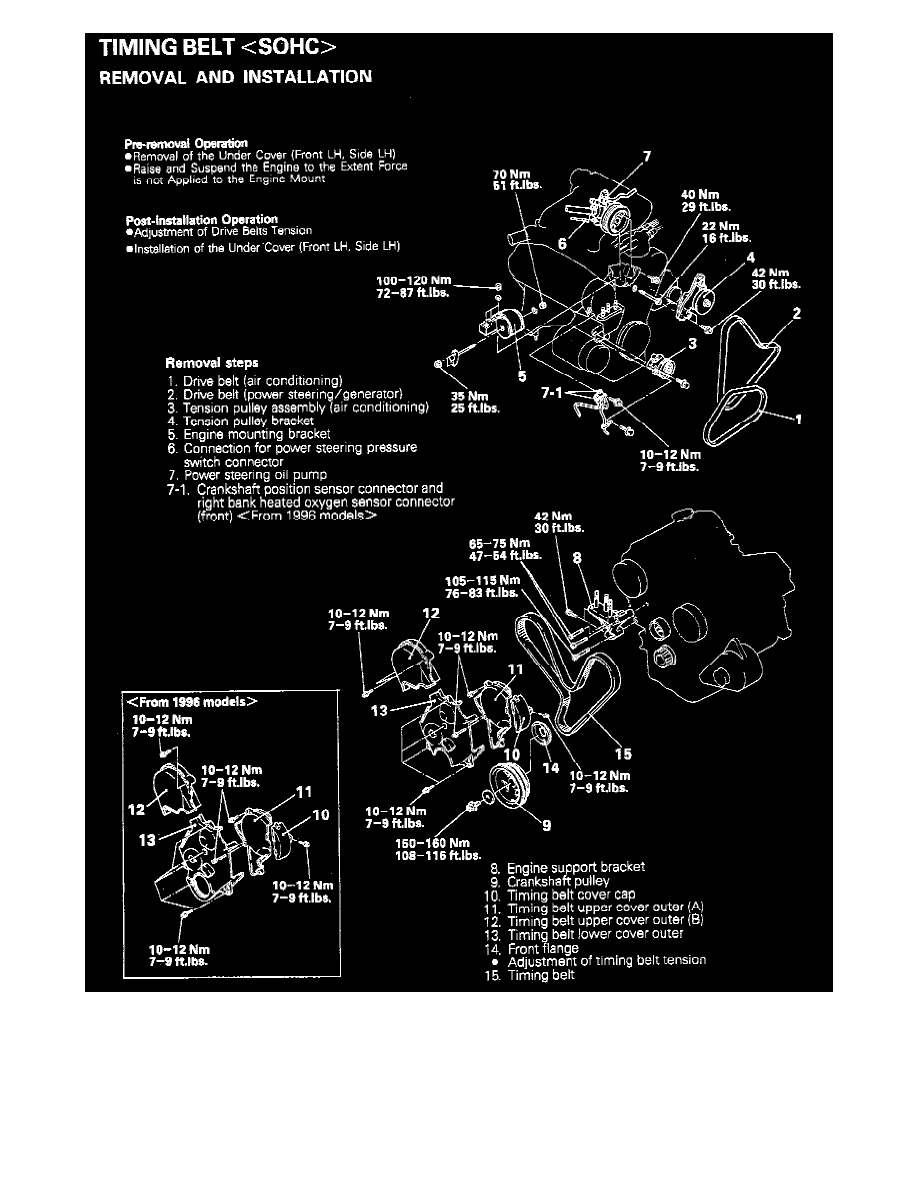

15. Installation of timing belt.
