Timing Belt: Diagrams (page 8 of 8)
- Make
- Mitsubishi
- Model
- Diamante
- Engine
- V6-2972cc 3.0L SOHC
- Year
- 1992
- Section
- Timing Belt
MaintenanceDiagrams · page 8 of 8

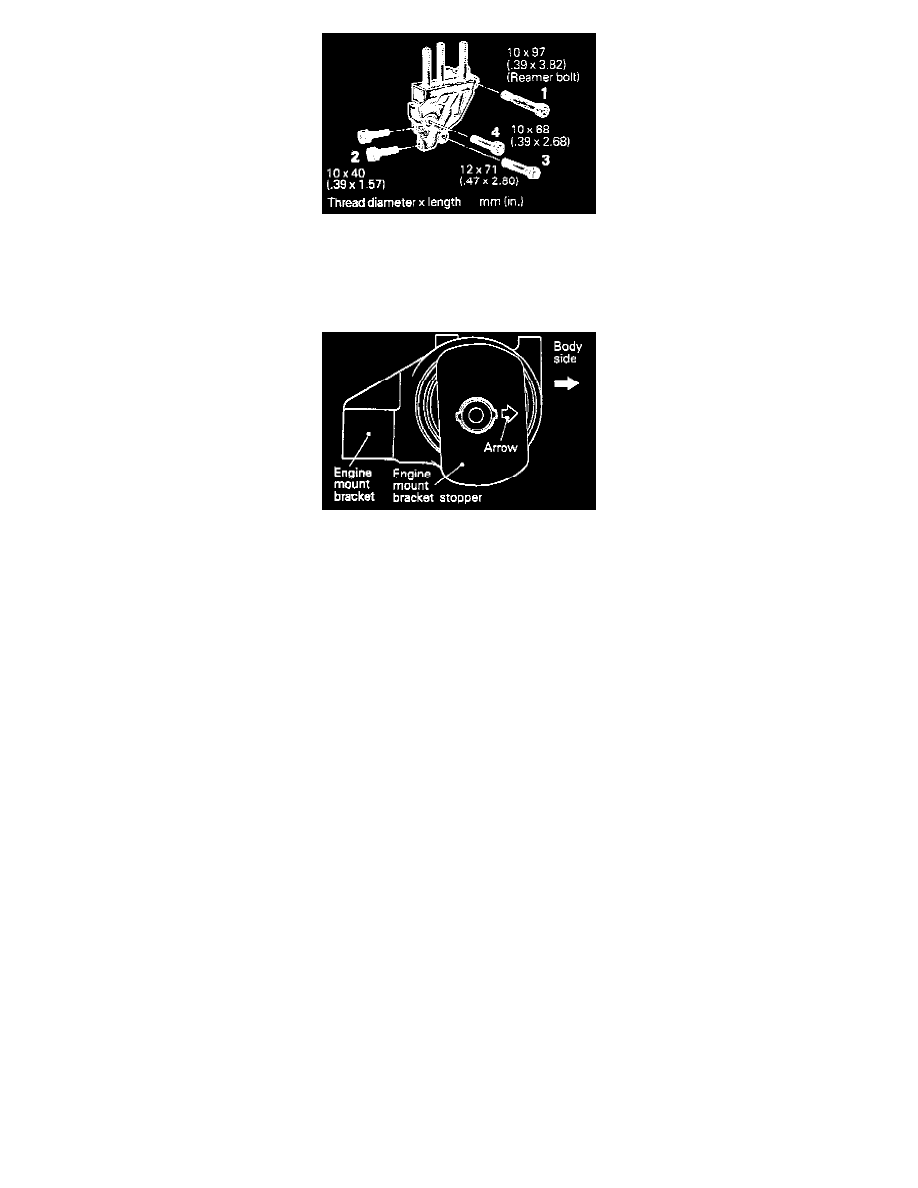

8. Installation of engine support bracket.
Since the mounting bolts of engine support bracket are different in size depending on location, insert them in numbered sequence.
CAUTION:
-
When installing the reamer bolt, tighten it, slowly spraying lubricant on the reamer area.
5. Installation of engine mount bracket.
Attach the engine mount bracket so that the arrow mark on the mount stopper is in the direction as shown in the illustration.
