Diamante V6-3.5L SOHC (2003)
Firewall: Diagrams

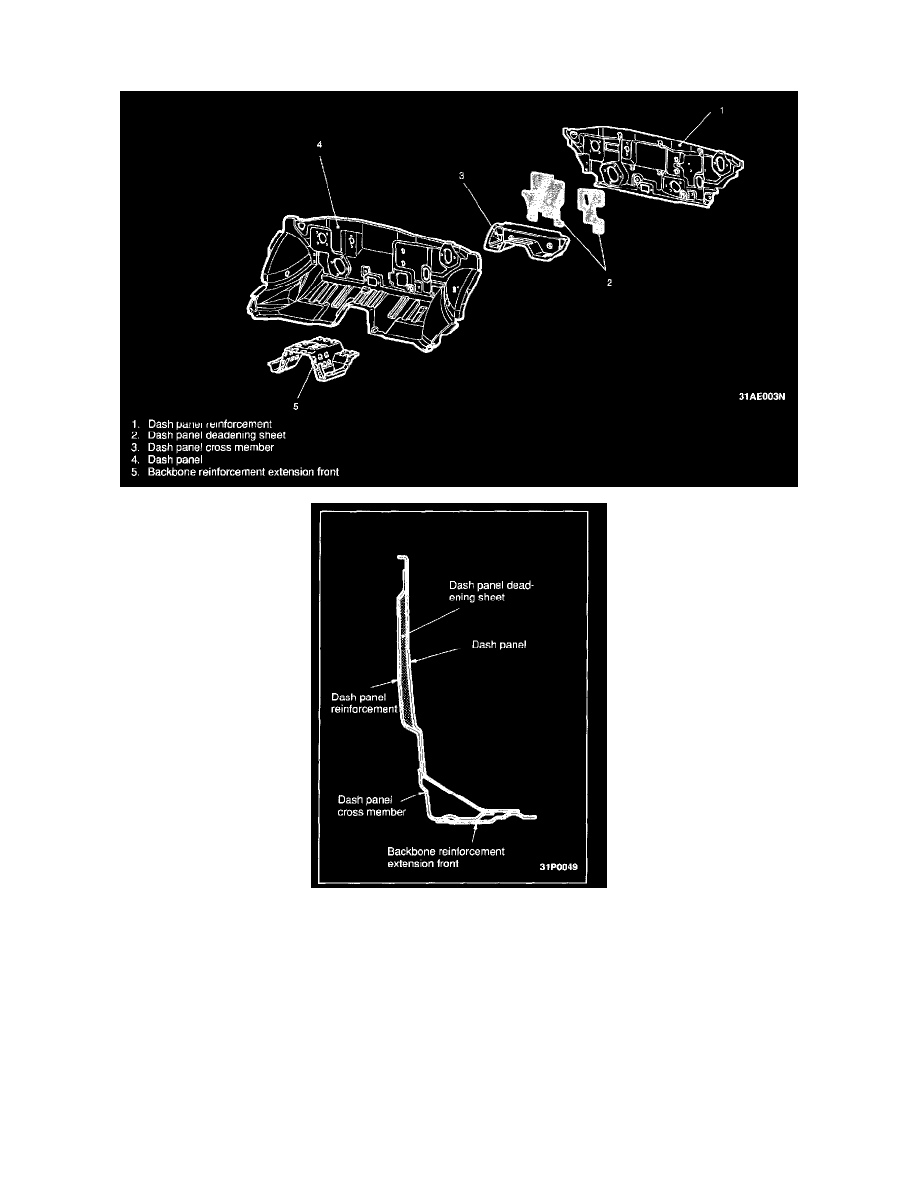

DASH PANEL
A deadening sheet (cellular rubber sheet) is provided between the dash panel and the dash panel reinforcement. This double wall construction improves
the soundproofing effects.
