Diamante V6-3.5L SOHC (2003)

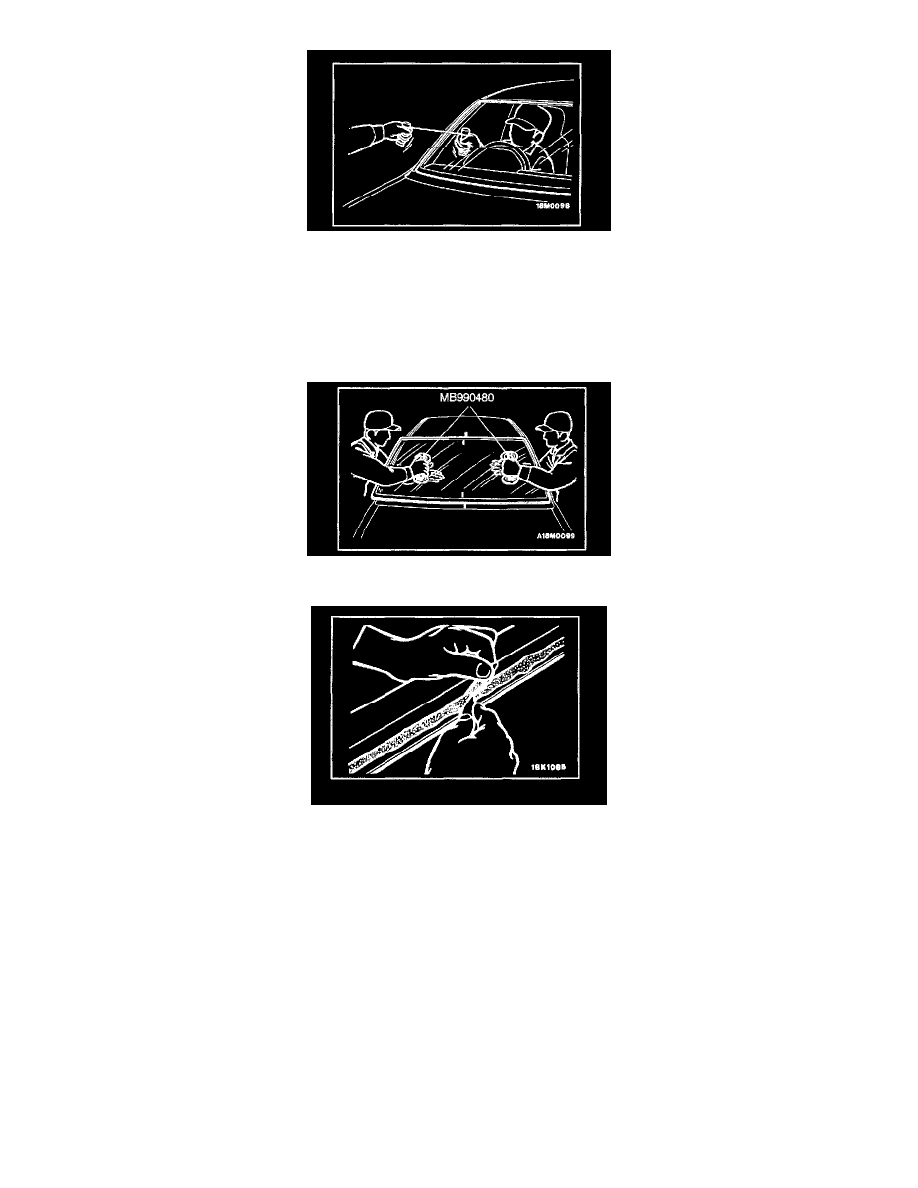

3. Using a sharp-point drill, make a hole in the windshield glass adhesive.
4. Pass the piano wire from the inside of the vehicle through the hole.
5. Pull the piano wire alternately from the inside and outside along the windshield glass to cut the adhesive.
CAUTION: Do not let the piano wire touch the edge of the windshield glass.
6. If the glass is to be reused make mating marks on the windshield glass and body.
7. Use the special tool to remove the windshield glass.
8. Use a knife to cut away the remaining adhesive so that the thickness is within 2 mm (.08 in.) around the entire circumference of the body flange.
9. Finish the flange surfaces so that they are smooth.
CAUTION: Be careful not to remove more adhesive than is necessary.
CAUTION: Be careful also not damage the paintwork on the body surface with the knife. If the paintwork is damaged, repair the damaged area
with repair paint or anti-rust agent.
10. When reusing the glass, remove the adhesive still adhering to the glass, and clean with isopropyl alcohol.
11. Clean the body side in the same way.
CAUTION: Let the cleaned places stand for 3 minutes or more, and carry out the next procedures after they have dried. Also, do not touch any
surface that has been cleaned.
INSTALLATION SERVICE POINTS
