Eclipse L4-24L SOHC: Timing Component Alignment Marks Locations

  • Maintenance
  • Timing Component Alignment Marks
  • Component Information
  • Locations

Page 1
background image

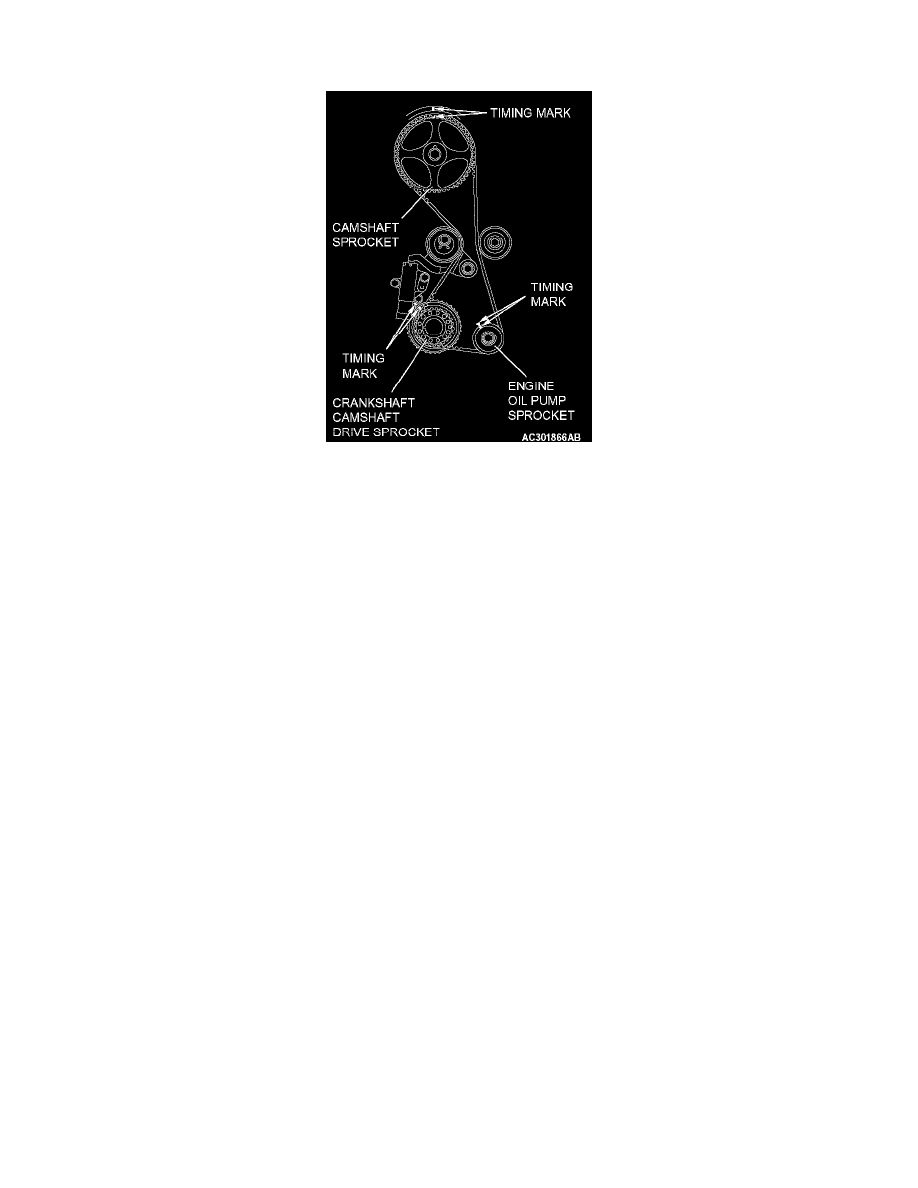

Timing Component Alignment Marks: Locations

Timing Component Alignment Marks
