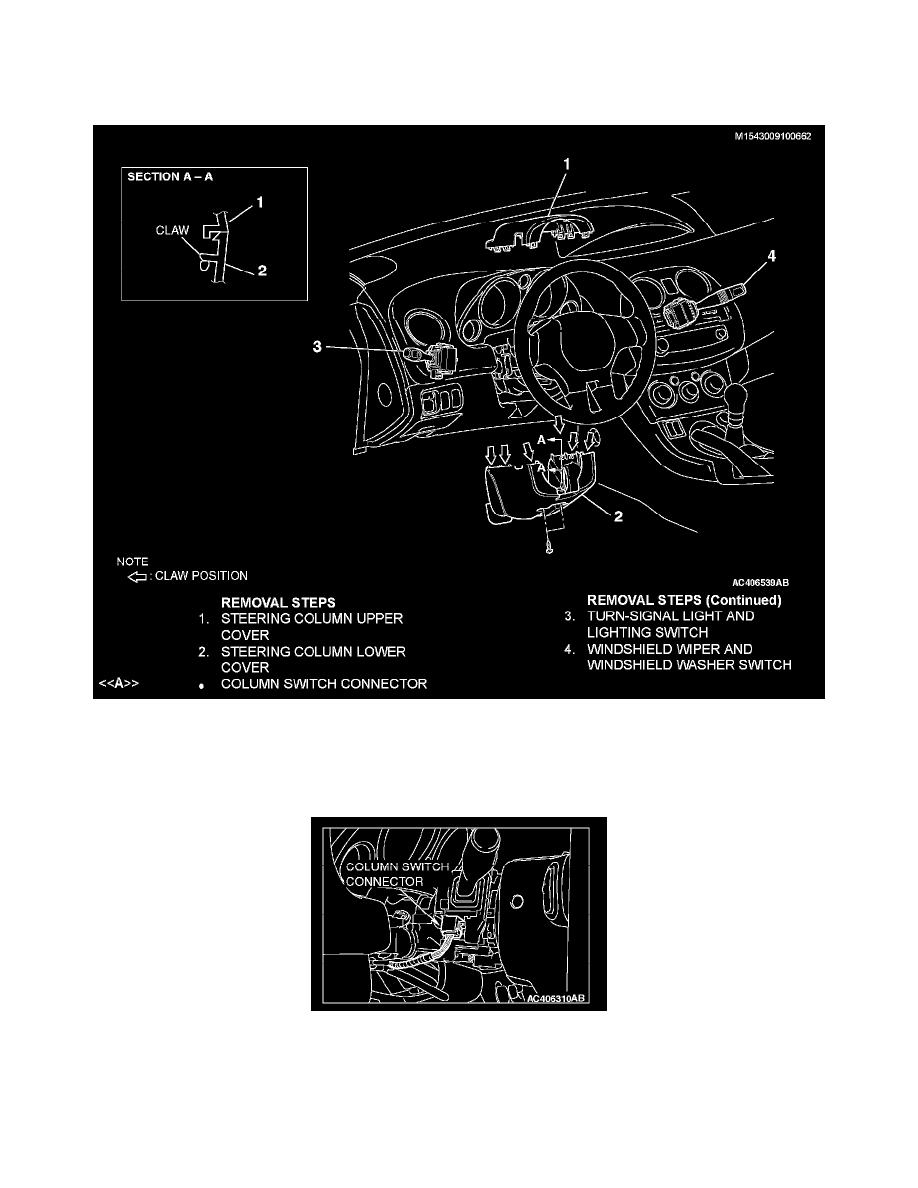

Wiper Switch: Service and Repair

COLUMN SWITCH

REMOVAL AND INSTALLATION

Removal Steps 1-4

REMOVAL SERVICE POINT

<<A>> COLUMN SWITCH CONNECTOR REMOVAL

Disconnect column switch connector C-309 shown in the illustration.
