Eclipse V6-3.8L (6G75) (2006)
/Page-975001.png)
Shift Interlock: Service and Repair
A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS
REMOVAL AND INSTALLATION
WARNING
^
When removing and installing the shift lock cable unit and key interlock cable, be careful not to hit the SRS-ECU.
^
when removing and installing the front passenger sat, be sure to carry out accuracy check occupant classification sensor after the seat has
been installed in the vehicle.

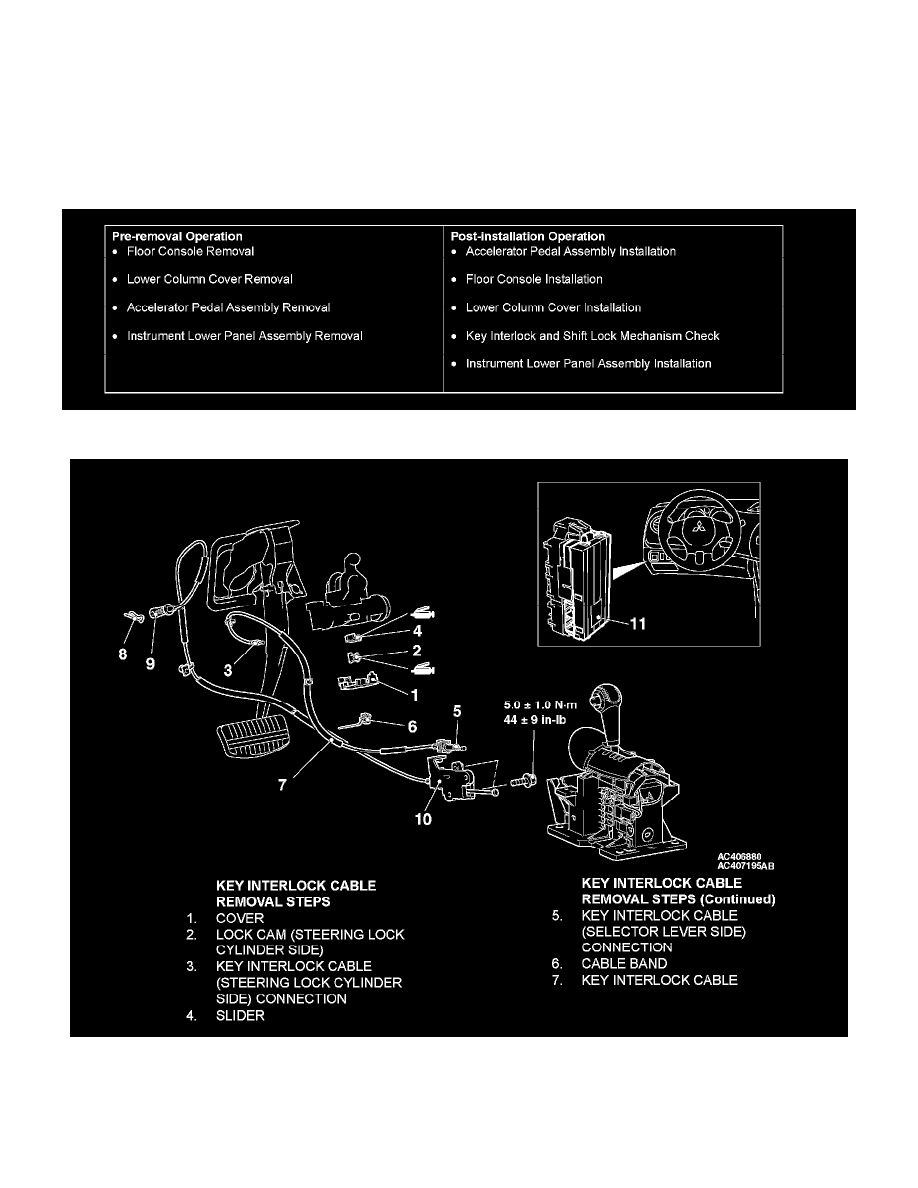

Pe-removal Operation & Post-installation Operation
Key Interlock Cable Removal Steps 1-7
