Eclipse V6-3.8L (6G75) (2006)
Tightening torque: 5.0 ± 1.0 Nm (44 ± 9 inch lbs.)
4. Check the selector lever operation.
>>B<< SHIFT LOCK CABLE UNIT (BRAKE PEDAL SIDE) INSTALLATION

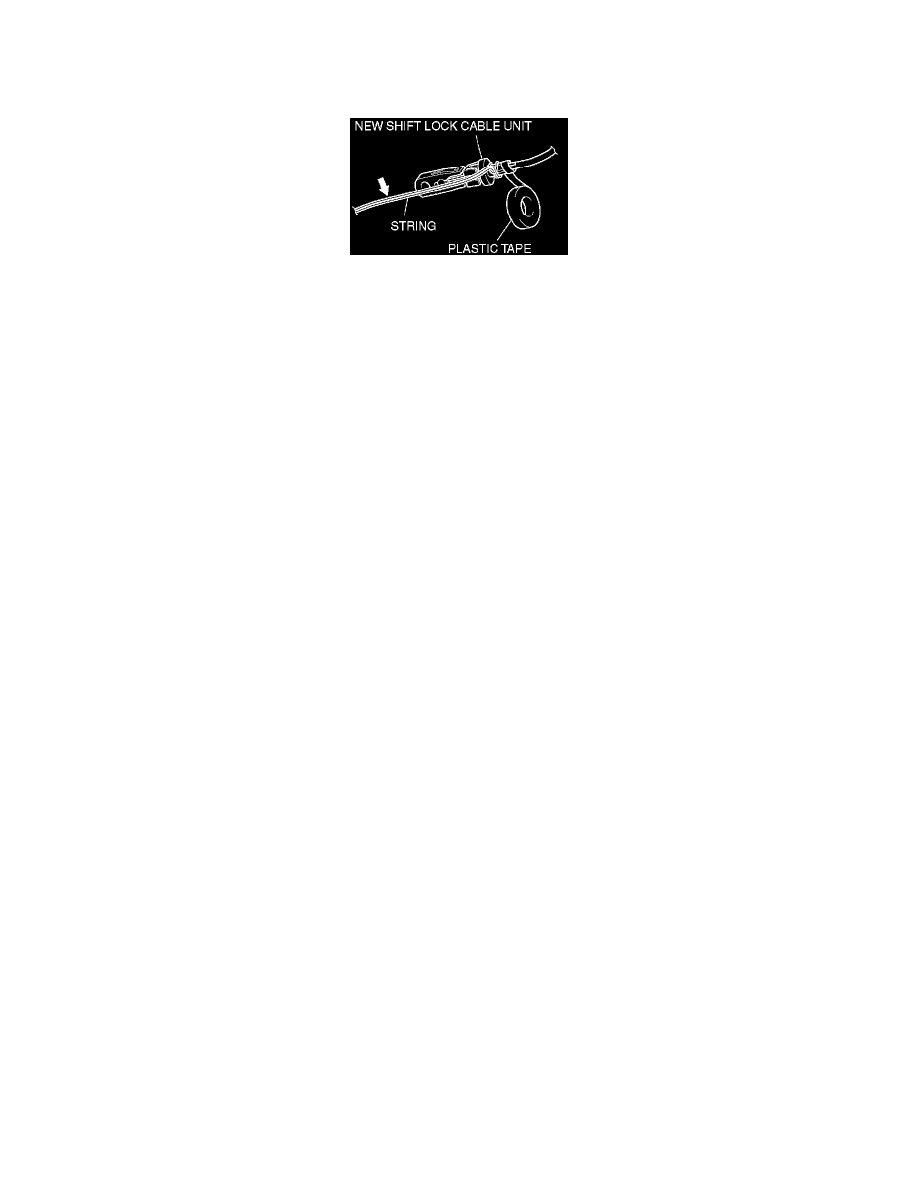

CAUTION: When threading the shift lock cable unit behind the heater unit, wind a plastic tape around it up to the arrow as shown so that the shift
lock cable unit will not be bent.
1. Bind up the cap of new shift lock cable unit with the string threaded behind the heater unit when removing and wind a plastic tape around it.
2. Pull the string slowly and thread the shift lock cable unit behind the heater unit.
3. Remove the string and the plastic tape from the shift lock cable unit, and then install the shift lock cable unit to the brake pedal bracket.
INSPECTION
Check the cable assembly for proper operation and for damage.
