Timing Belt: Diagrams
- Make
- Mitsubishi
- Model
- Eclipse Spyder GT
- Engine
- V6-3.0L SOHC
- Year
- 2002
- Section
- Timing Belt › Diagrams
MaintenanceDiagrams · page 1 of 6
Timing Belt: Diagrams

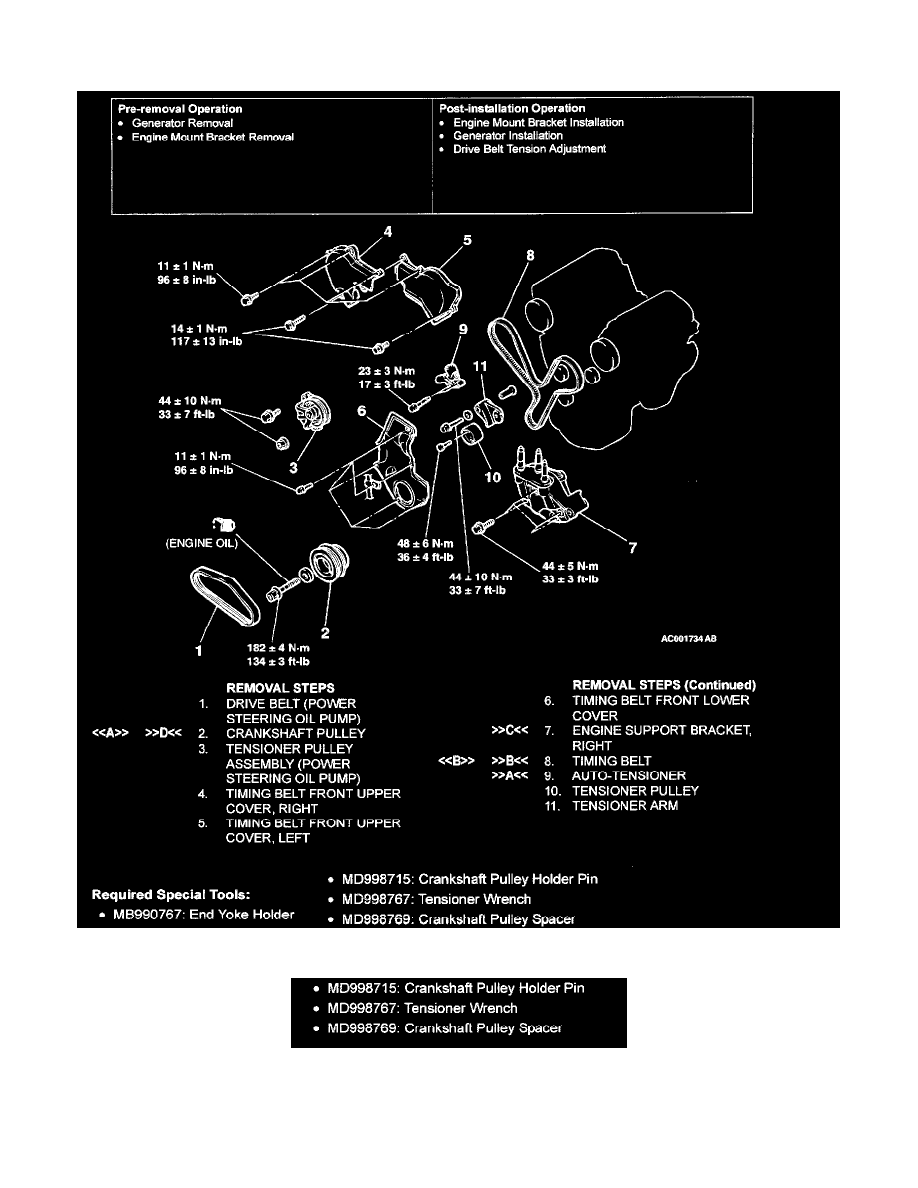

TIMING BELT REPLACEMENT W/ RELATED COMPONENTS
Part 1 of 2
Part 2 of 2
