Endeavor V6-3.8L SOHC (2004)
Brake Bleeding: Service and Repair
BLEEDING
CAUTION: Use only brake fluid DOT3 or DOT4. Never mix the specified brake fluid with other fluid as it will influence the braking performance
significantly.
MASTER CYLINDER BLEEDING

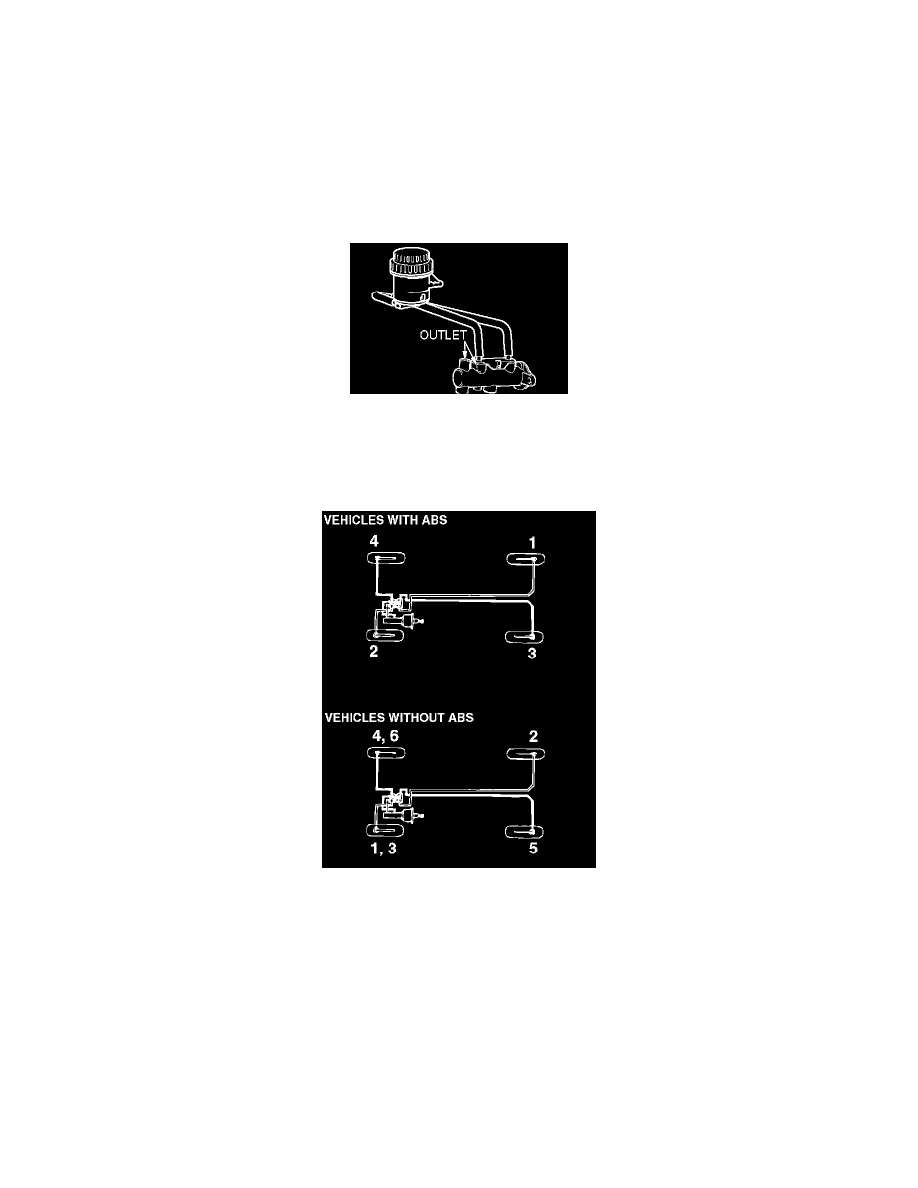

The master cylinder used has no check valve, so if bleeding is carried out by the following procedure, bleeding of air from the brake pipe/line will
become easier. (When brake fluid is not contained in the master cylinder).
1. Fill the reserve tank with brake fluid,
2. Keep the brake pedal depressed.
3. Have another person cover the master cylinder outlet with a finger.
4. With the outlet still closed, release the brake pedal.
5. Repeat steps 2-4 three or four times to fill the inside of the master cylinder with brake fluid.
BRAKE LINE BLEEDING
Start the engine and bleed the air in the sequence shown in the figure.
