Firewall: Diagrams

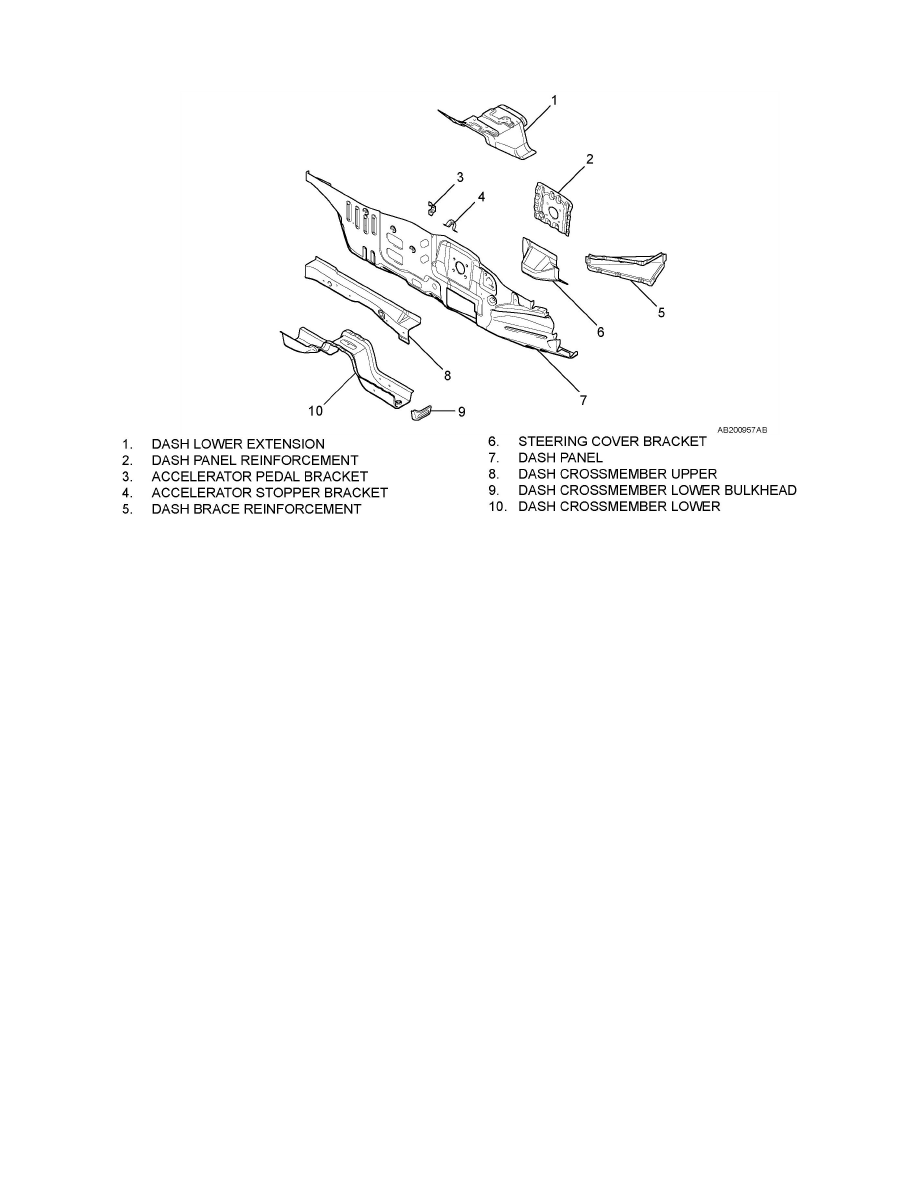

DASH PANEL
-
A large dash crossmember and dash brace installed in the chassis is used to disperse energy upon impact efficiently, so that cabin deformation is
suppressed.
-
Plate thickness of dash panel is increased to suppress cabin deformation and improve sound insulation upon impact.
