Lancer L4-2.0L (4B11) (2008)
Brake Bleeding: Service and Repair
BLEEDING
CAUTION
Be sure to use the specified brand and type of brake fluid. Avoid mixing with other type of brake fluid.
Brake fluid: DOT3 or DOT4
BLEEDING OF MASTER CYLINDER
When removed the master cylinder assembly, bleed the master cylinder in the following procedure to make bleeding of the brake pipeline easier
(When no brake fluid is in the master cylinder).
1. Fill the brake fluid reservoir with brake fluid.
2. Depress and hold the brake pedal.

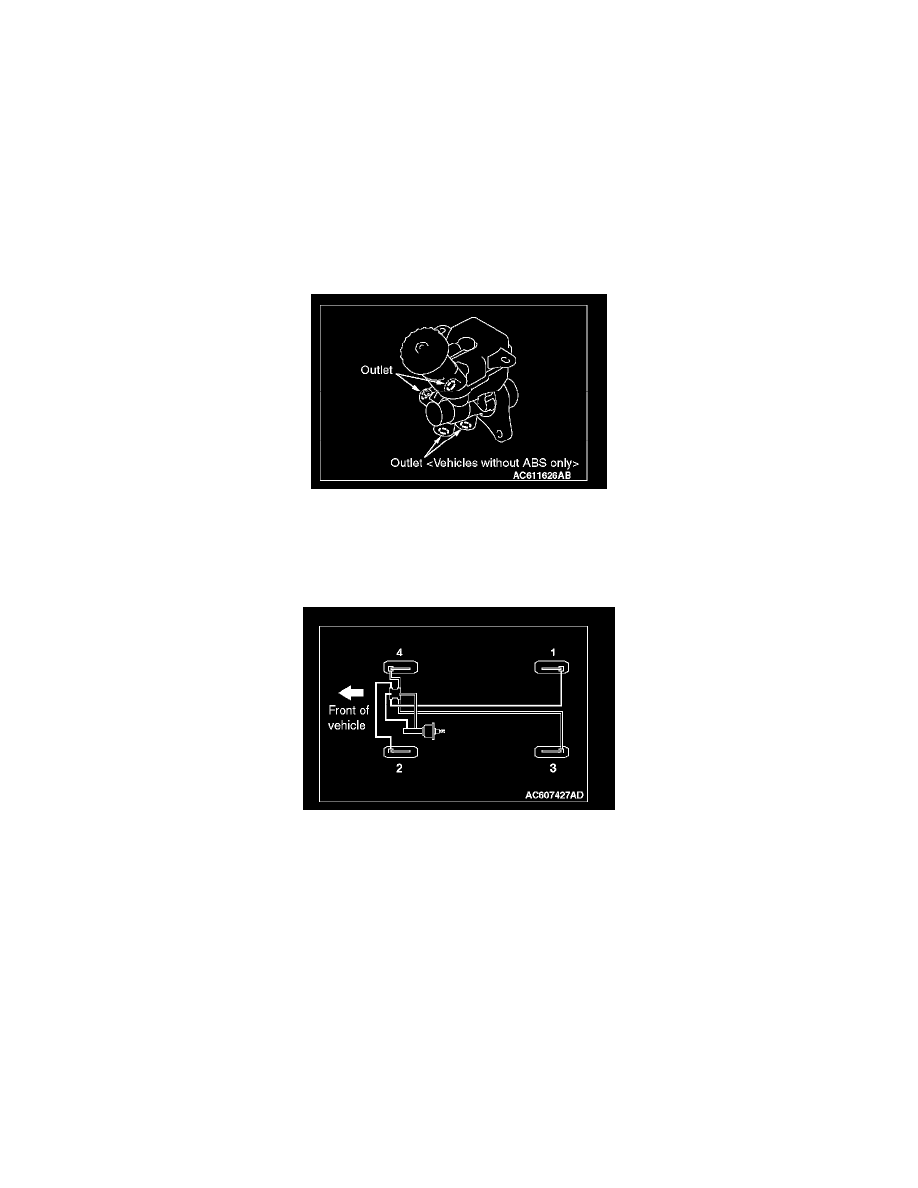

3. Another operator closes the master cylinder outlets with his fingers.
4. In this condition, release the brake pedal.
5. Repeat Steps 2 to 4 for 3 or 4 times to fill the master cylinder with brake fluid.
BLEEDING OF BRAKE PIPELINE
1. Perform the bleeding in the order shown in the figure.
