Lancer L4-2.4L (4B12) (2009)
/Page-283001.png)
Coolant: Service and Repair
ENGINE COOLANT (CHANGE)
Check the cooling system parts such as the radiator, heater and oil cooler hoses, thermostat and their connections for leakage and damage.
Change Coolant
WARNING
When removing the radiator cap, use care to avoid contact with hot coolant or steam. Place a shop towel over the radiator cap and turn the
radiator cap anti-clockwise a little to let the pressure escape through the vinyl tube. After relieving the steam pressure, remove the radiator
cap by slowly turning it anti-clockwise.
1. Drain the water from the radiator, heater core and engine after unplugging the radiator drain plug and removing the radiator cap.

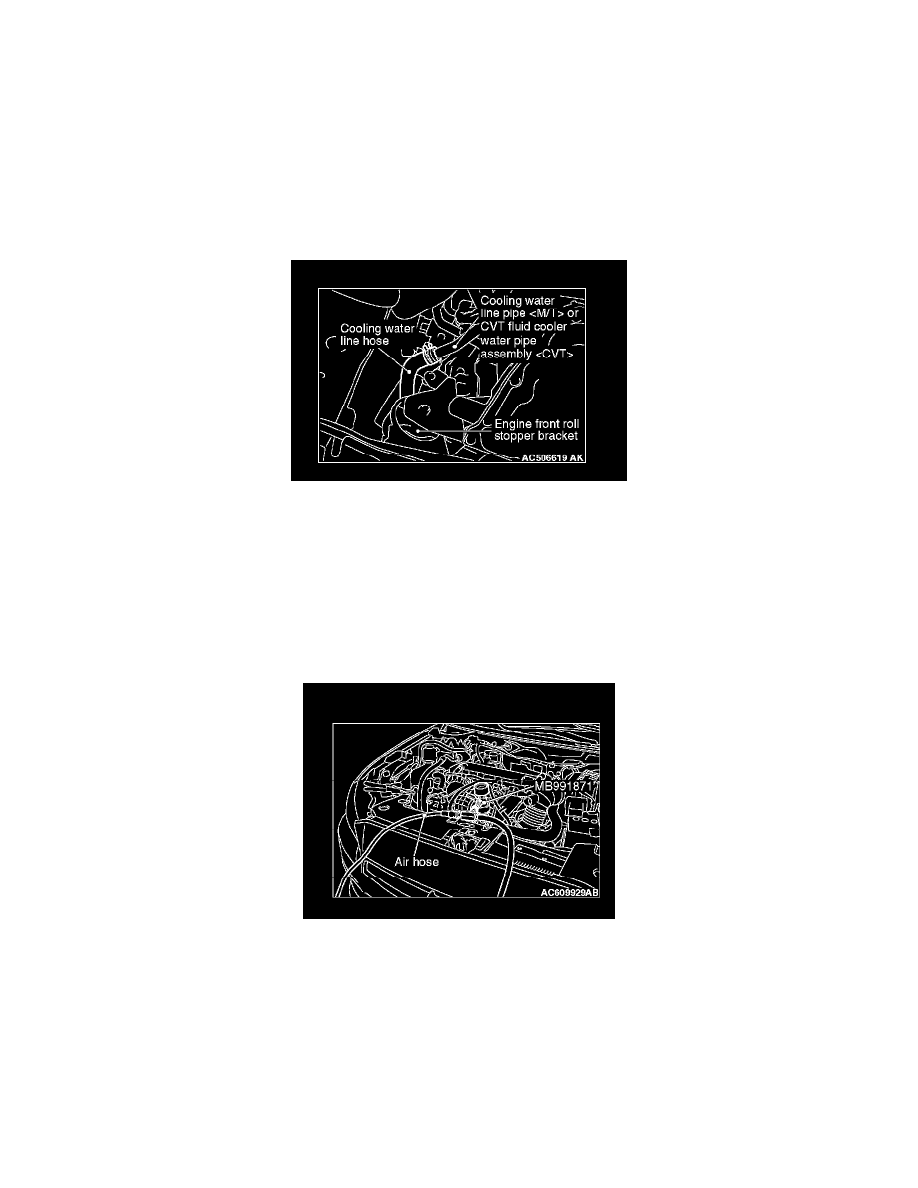

2. Disconnect the cooling water line hose and drain the coolant in the water jacket.
3. Remove the radiator condenser tank and drain the coolant.
4. Drain the coolant then clean the path of the coolant by injecting water into the radiator from the radiator cap area.
5. Connect the cooling water line hose.
6. Securely tighten the drain plug of the radiator.
7. Reinstall the radiator condenser tank.
CAUTION
Do not use alcohol or methanol anti-freeze or any engine coolants mixed with alcohol or methanol anti-freeze. The use of an improper
anti-freeze can cause corrosion of the aluminum components.
8. By referring to the section on coolant, select an appropriate concentration for safe operating temperature within the range of 30 to 60%. Use
special tool MB991871 to refill the engine coolant up to the top of the radiator port. A convenient mixture is a 50% water and 50% antifreeze
solution [freezing point: - 31° C (- 23.8° F)].
Recommended antifreeze: Long Life Antifreeze Coolant or an equivalent
Quantity: 7.0 dm3 (7.4 quarts)
[includes 0.65 dm3 (0.63 quarts) in the radiator condenser tank]
NOTE: For how to use special tool MB991871, refer to its manufacturer's instructions.
9. Tighten the radiator cap securely.
10. Remove the radiator condenser tank cap, and add the engine coolant up to the "FULL" line.
