Timing Belt: Specifications (page 5 of 7)
- Make
- Mitsubishi
- Model
- Mirage
- Engine
- L4-1468cc 1.5L SOHC
- Year
- 1993
- Section
- Timing Belt
MaintenanceSpecifications · page 5 of 7

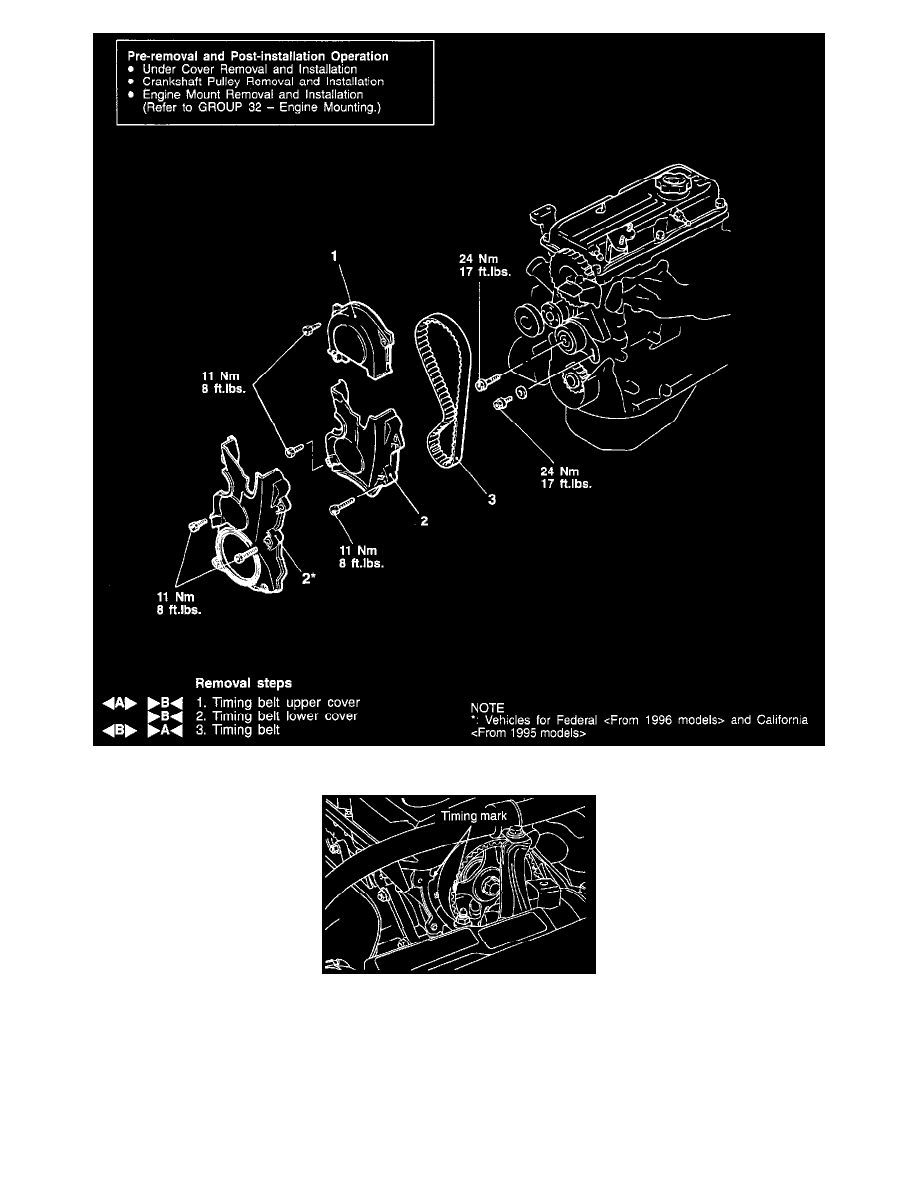

Exploded View
-
After removing the timing belt upper cover, rotate the crankshaft clockwise and align the timing marks.
Caution: Always turn the crankshaft clockwise.
TIMING BELT REMOVAL
(1) Loosen the timing belt tensioner bolts.
