Montero V6-3.8L SOHC (2005)

Page 1
background image

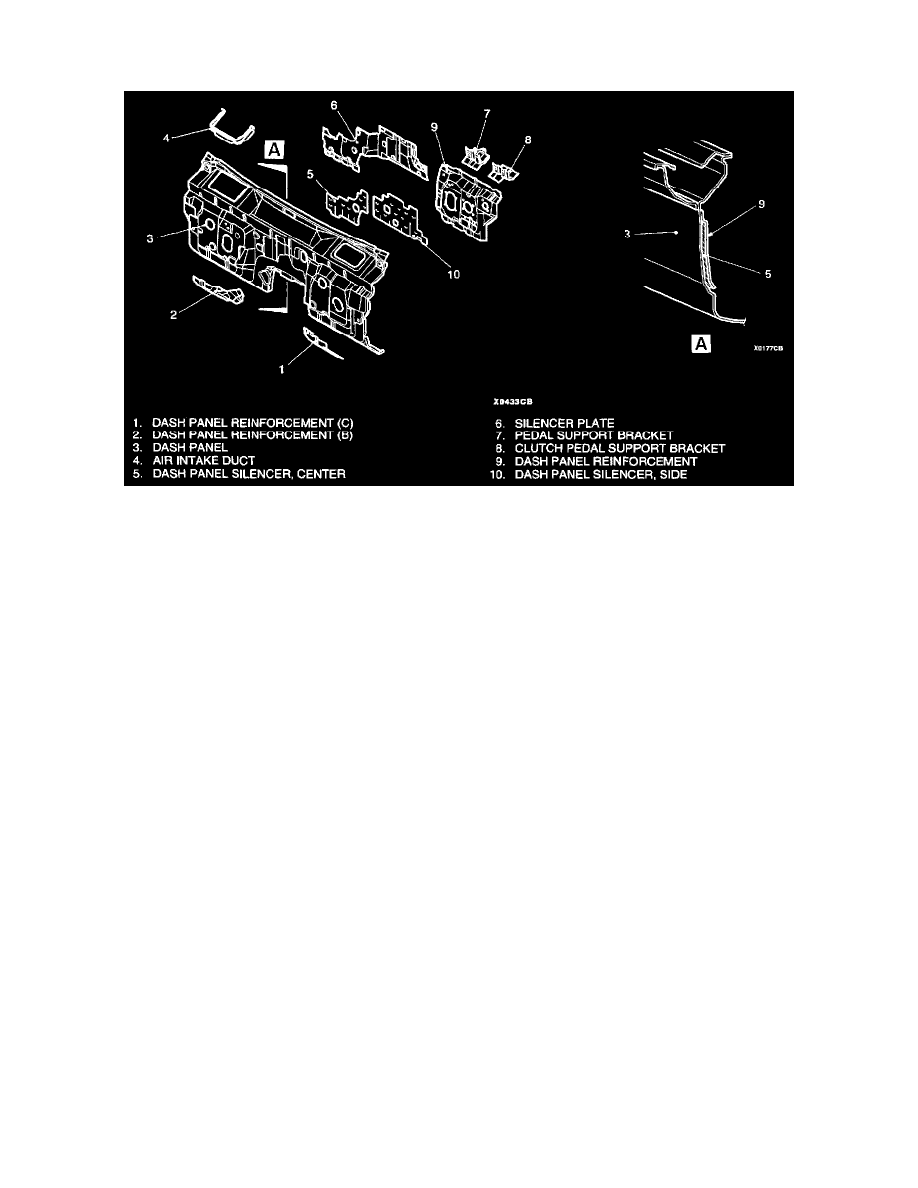

Firewall: Diagrams

DASH PANEL

A steel plate-type vibration damper (consisting of panels with silencer material inside) has been added to the dash panel to improve vibration damping
and soundproofing.
