Timing Belt: Specifications (page 10 of 11)
- Make
- Mitsubishi
- Model
- Montero
- Engine
- V6-3.8L SOHC
- Year
- 2005
- Section
- Timing Belt
MaintenanceSpecifications · page 10 of 11

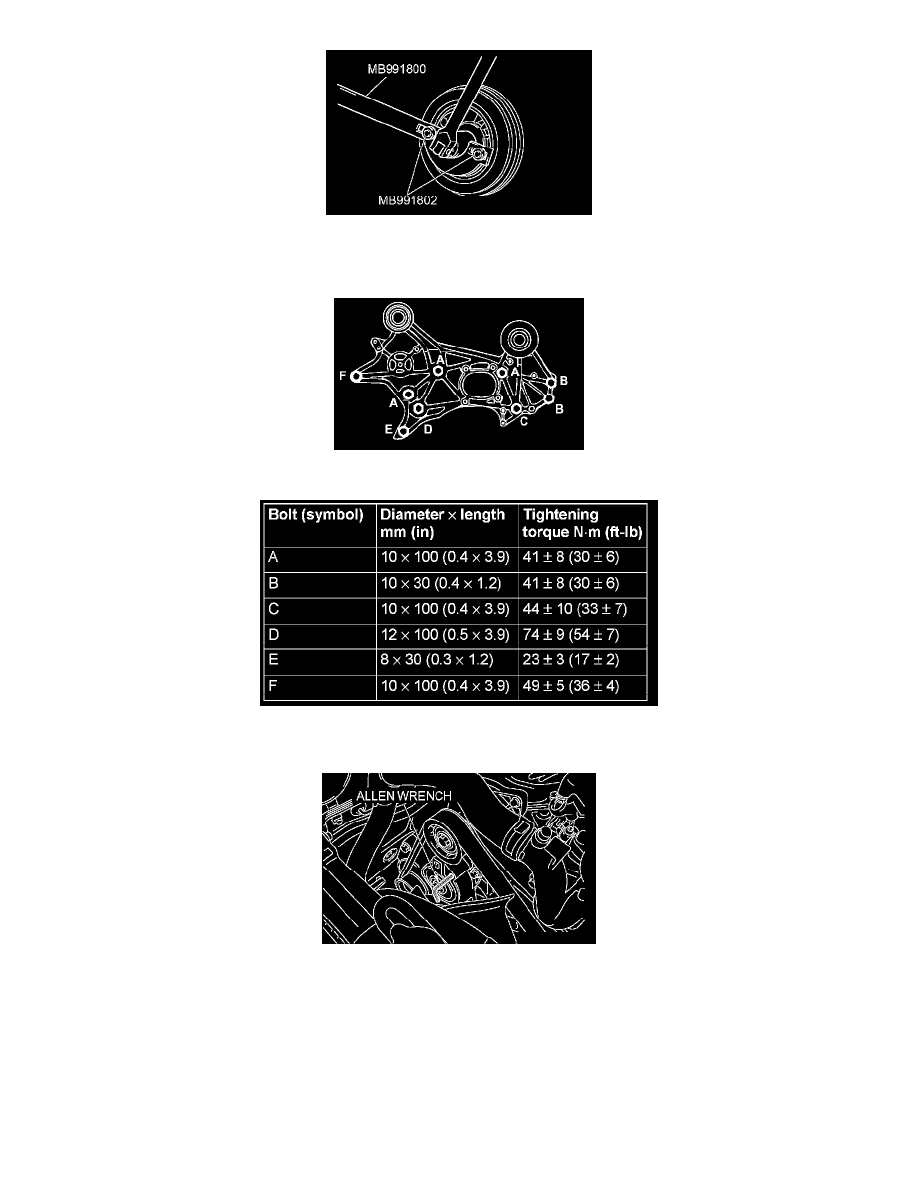

Use special tools MB991800 and MB991802 to install the crankshaft pulley.
>>D<< ACCESSORY MOUNT ASSEMBLY INSTALLATION
Install the bolts to the shown positions, and tighten them to the specified torque.
>>E<< DRIVE BELT AUTO TENSIONER INSTALLATION
1. Install the drive belt auto tensioner with the Allen wrench inserted.
2. After the drive belt has been installed, remove the Allen wrench while holding the drive belt auto tensioner with a socket wrench drive. Then
release the drive belt auto tensioner slowly.
INSPECTION
AUTO-TENSIONER
