Firewall: Diagrams
DASH PANEL

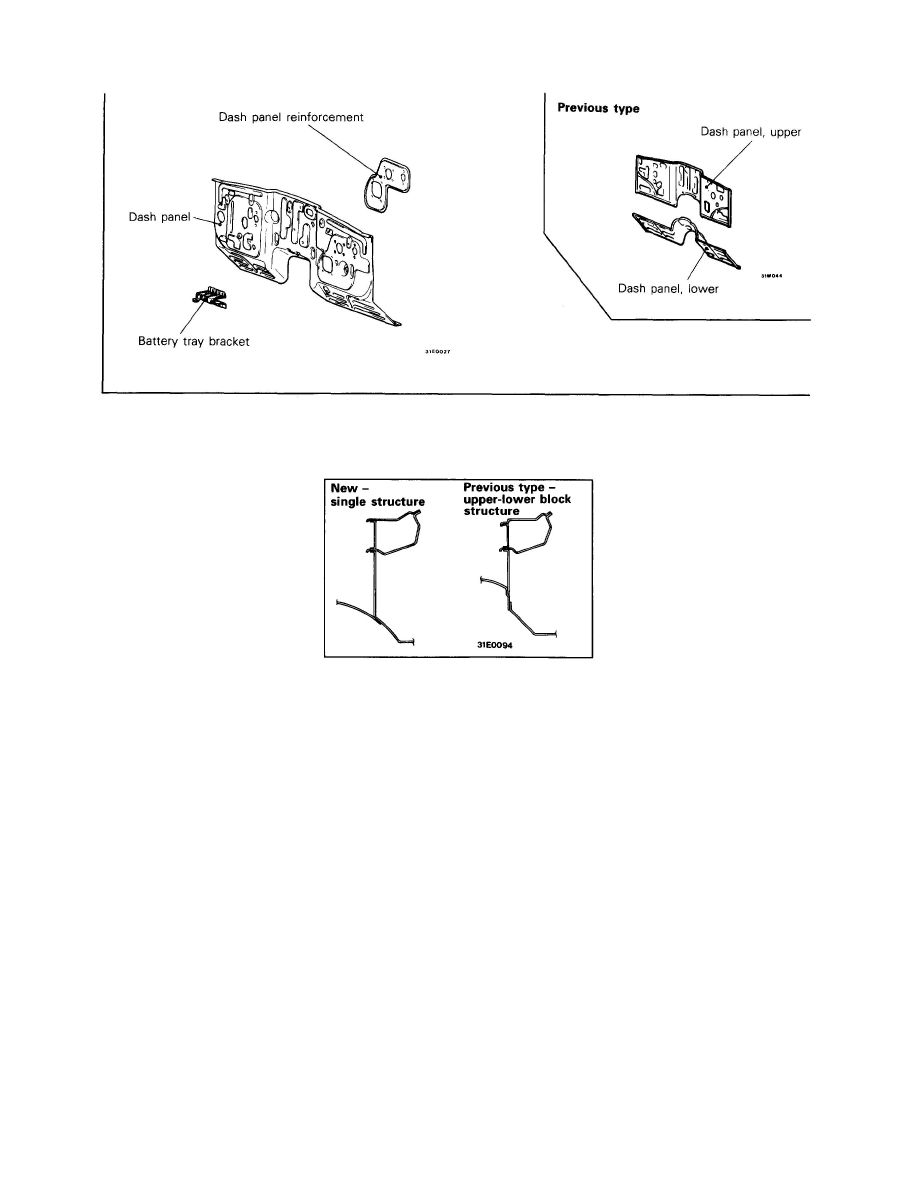

1. The previous dash panel with an upper-lower block structure has been changed to a single structure, to provide increased corrosion resistance and
sound reduction.
2. Together with the single structure of the dash panel, the fender shield connection section is located on the tilted surface of the dash panel, and the
structure effectively receives the input from the No.1 mounting along the shear direction.
