Montero LTD 4WD V6-3.5L SOHC (2002)
Firewall: Diagrams

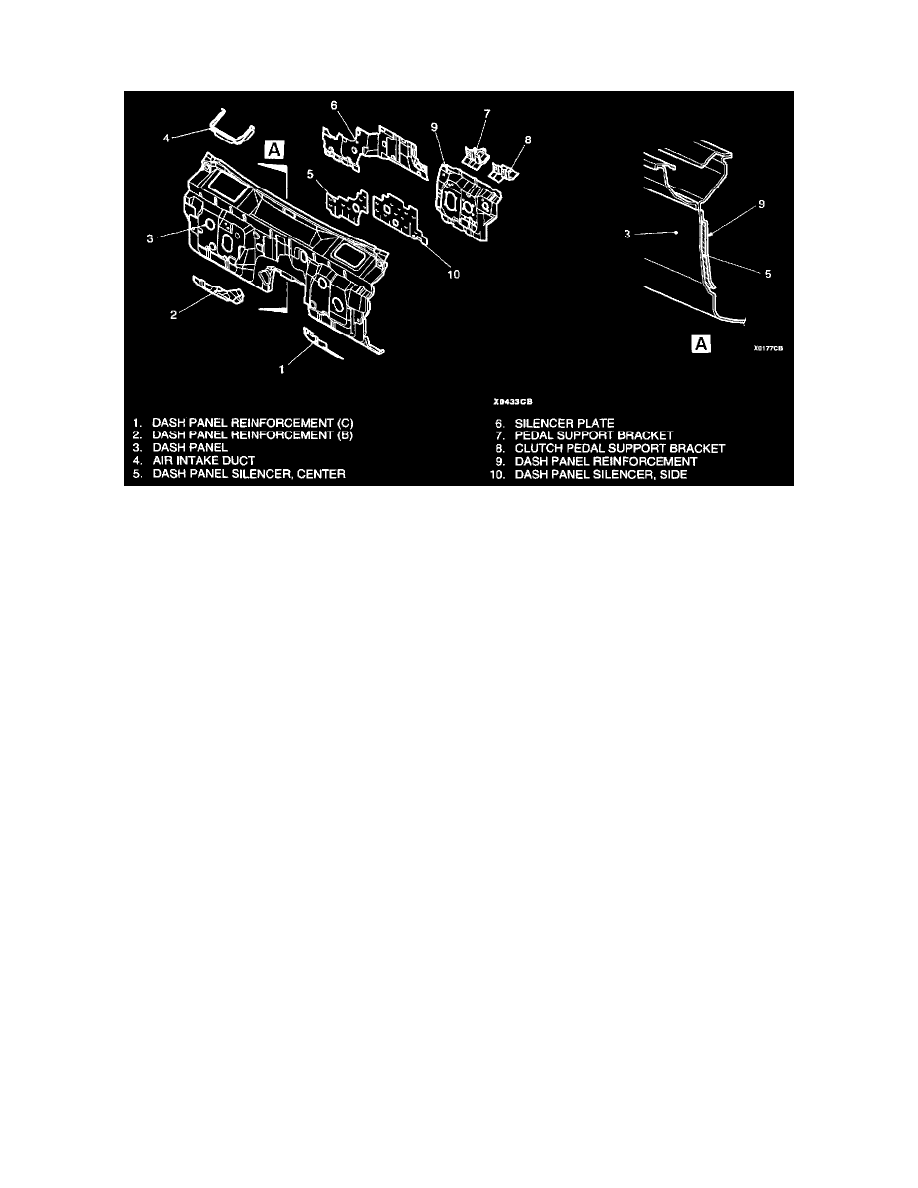

DASH PANEL
A steel plate-type vibration damper (consisting of panels with silencer material inside) has been added to the dash panel to improve vibration damping
and soundproofing.
