Outlander AWD L4-2.4L (4B12) (2010)

  • Maintenance
  • Timing Component Alignment Marks
  • Component Information
  • Locations

Page 1
background image

Timing Component Alignment Marks: Locations

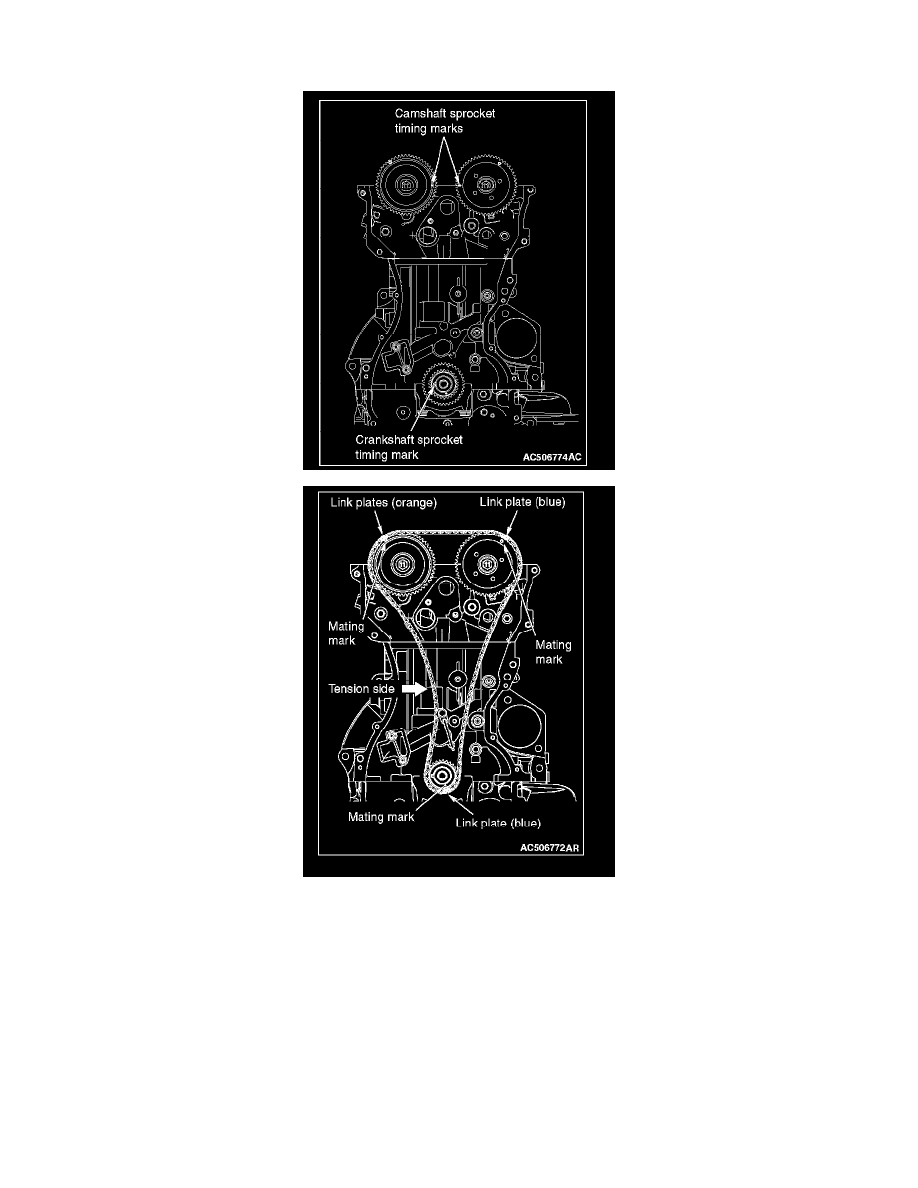

Timing Chain Alignment Marks

  • Maintenance
  • Timing Component Alignment Marks
  • Component Information
  • Locations
