Cowl: Diagrams
- Make
- Mitsubishi
- Model
- Outlander AWD
- Engine
- L4-2.4L SOHC
- Year
- 2003
- Section
- Cowl › Diagrams
Body and FrameDiagrams
Cowl: Diagrams

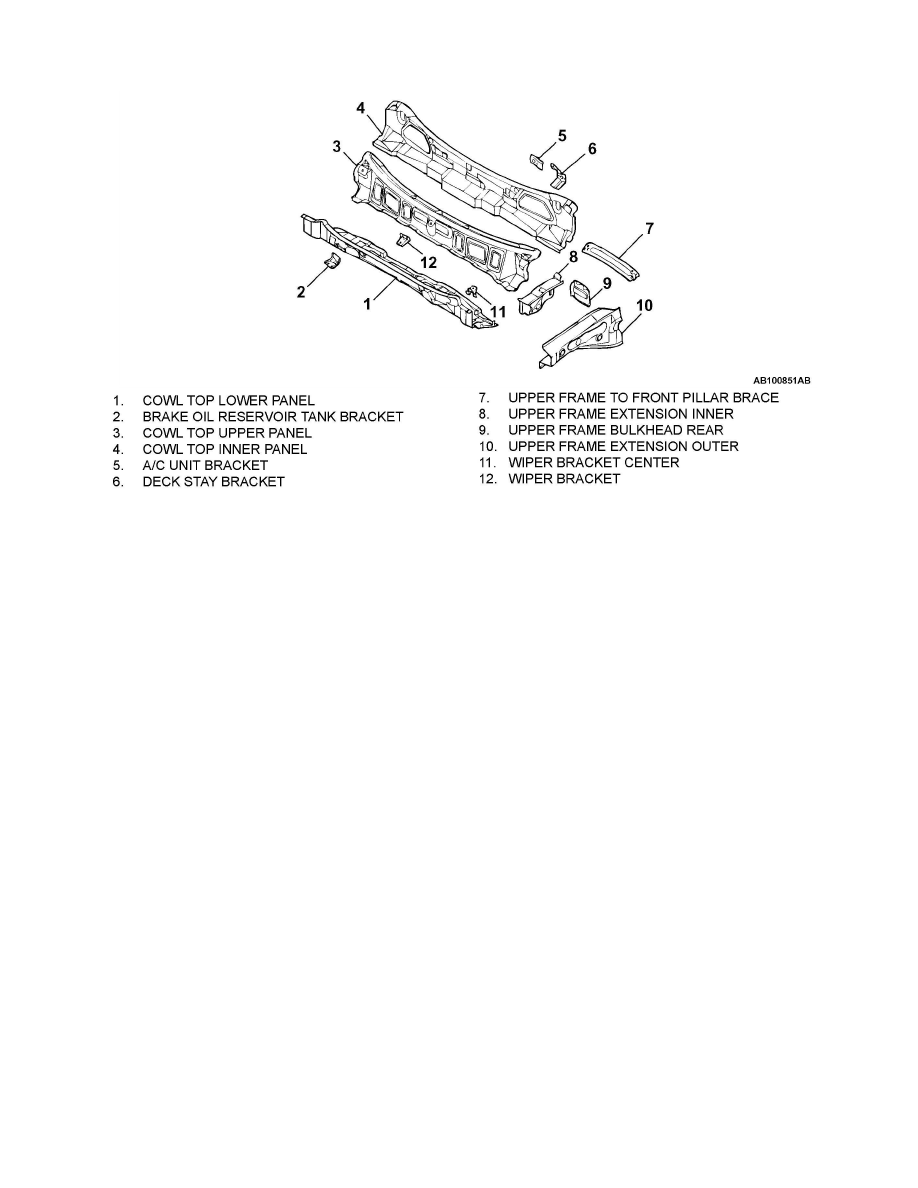

FRONT DECK
The cowl top panel features a closed section structure. A bulkhead was added inside the upper frame extension. Further, an upper frame to front pillar
brace was added to connect the upper frame extension and front pillar. The aim for this structure is to improve safety upon impact and driving stability.
