Seat Heater: Diagrams

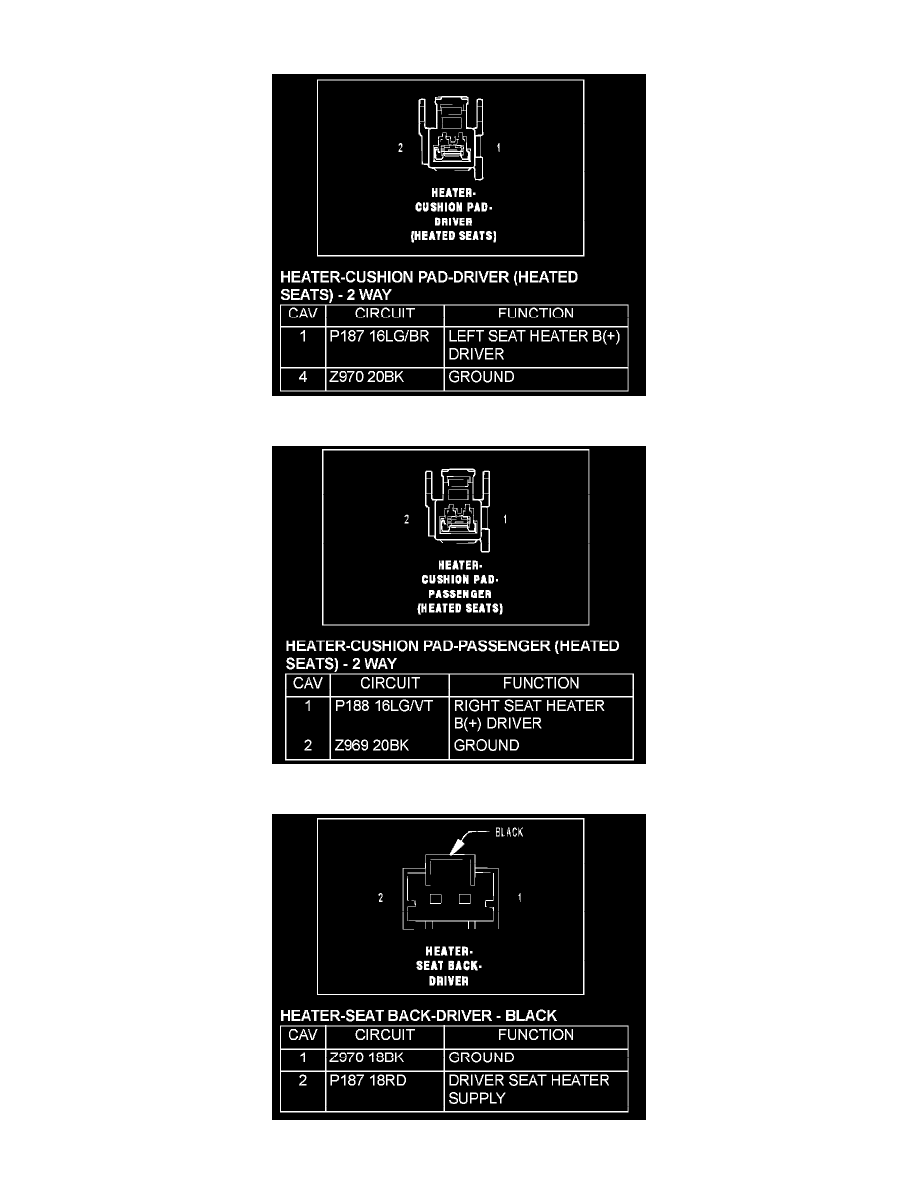

Heater-Cushion Pad-Driver (Heated Seats)-2 Way
Heater-Cushion Pad-Passenger (Heated Seats)-2 Way
