Sigma V6-2972cc 3.0L SOHC (1989)

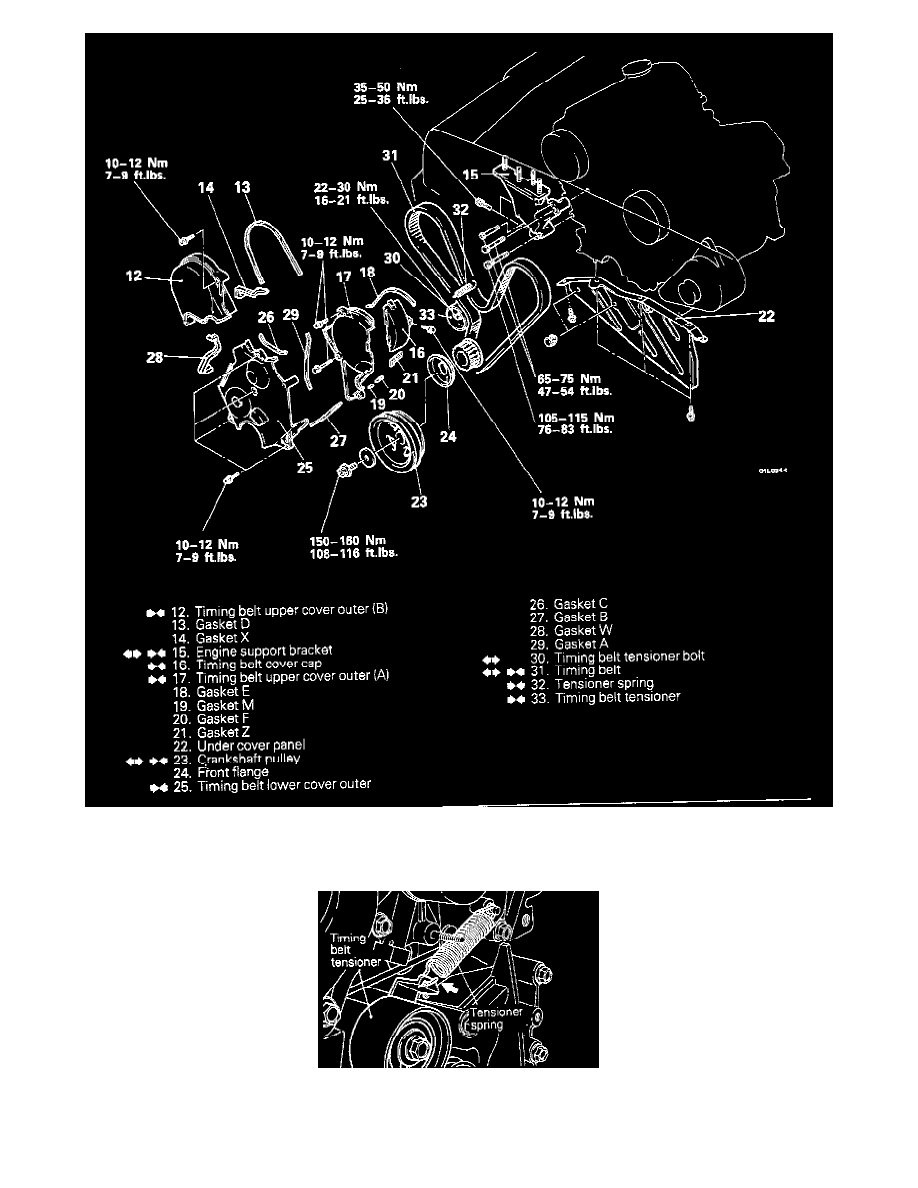

SERVICE POINTS OF INSTALLATION
33. Installation of timing belt tensioner. / 32.Tensioner spring.
(1) Attach the tensioner and the timing bolt tensioner.
(2) Engage top of the tensioner spring on the water pump pin. Attach the hook in the direction shown in the drawing.
