Timing Belt: Specifications (page 12 of 12)
- Make
- Mitsubishi
- Model
- Sigma
- Engine
- V6-2972cc 3.0L SOHC
- Year
- 1989
- Section
- Timing Belt
MaintenanceSpecifications · page 12 of 12

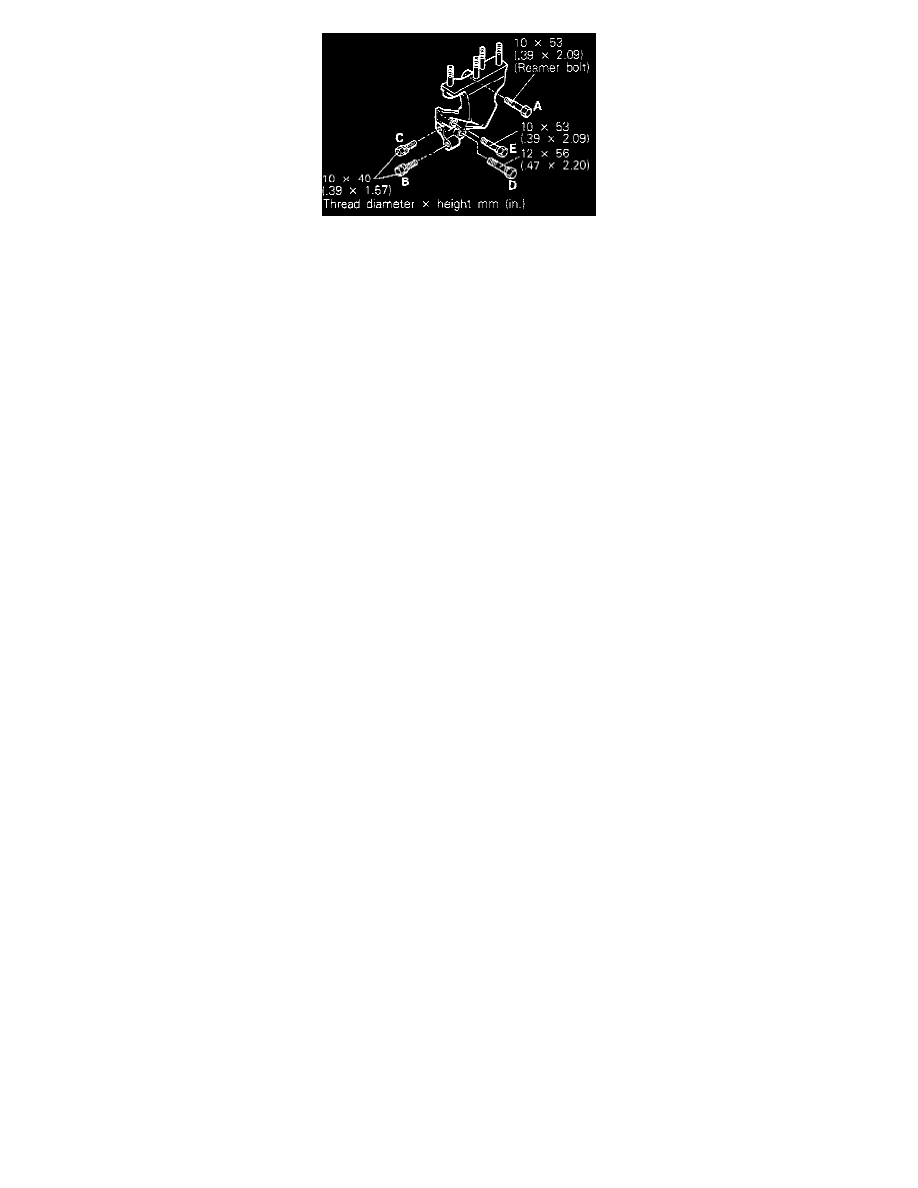

15. Installation of engine support bracket.
Since the mounting bolts of engine support bracket are different in size depending on location, insert them in numbered sequence.
CAUTION:
-
When installing the reamer bolt, tighten it, slowly spraying lubricant on the reamer area.
NOTE:
-
To make work easier, slightly jack up the engine body.
8. V-ribbed belt sag and tension adjustment.
6. Air conditioner compressor belt sag adjustment.
