Alignment: Specifications
Front Wheel Alignment

GENERAL SPECIFICATIONS
Camber

Minimum .....................................................................................................................................................................................................  -0°51' (-0.85°)
Nominal .......................................................................................................................................................................................................  -0°06' (-0.10°)
Maximum .......................................................................................................................................................................................................  0°39' (0.65°)
Left And Right Difference .....................................................................................................................................................................  45' (0.75°) or less

Caster:

Minimum ......................................................................................................................................................................................................  1° 55' (1.92°)
Nominal ........................................................................................................................................................................................................  2° 40' (2.67°)
Maximum ......................................................................................................................................................................................................  3° 25' (3.42°)
Left And Right Difference .....................................................................................................................................................................  45' (0.75°) or less

Kingpin Inclination:

Minimum ..................................................................................................................................................................................................  13° 20' (13.33°)
Nominal ....................................................................................................................................................................................................  14° 05' (14.08°)
Maximum ..................................................................................................................................................................................................  14° 50' (14.83°)

Total Toe-in:

Angle (Left + Right)

Minimum: ......................................................................................................................................................................................................  0' (0.00°)
Nominal: ........................................................................................................................................................................................................  6' (0.10°)
Maximum: ...................................................................................................................................................................................................  12' (0.20°)

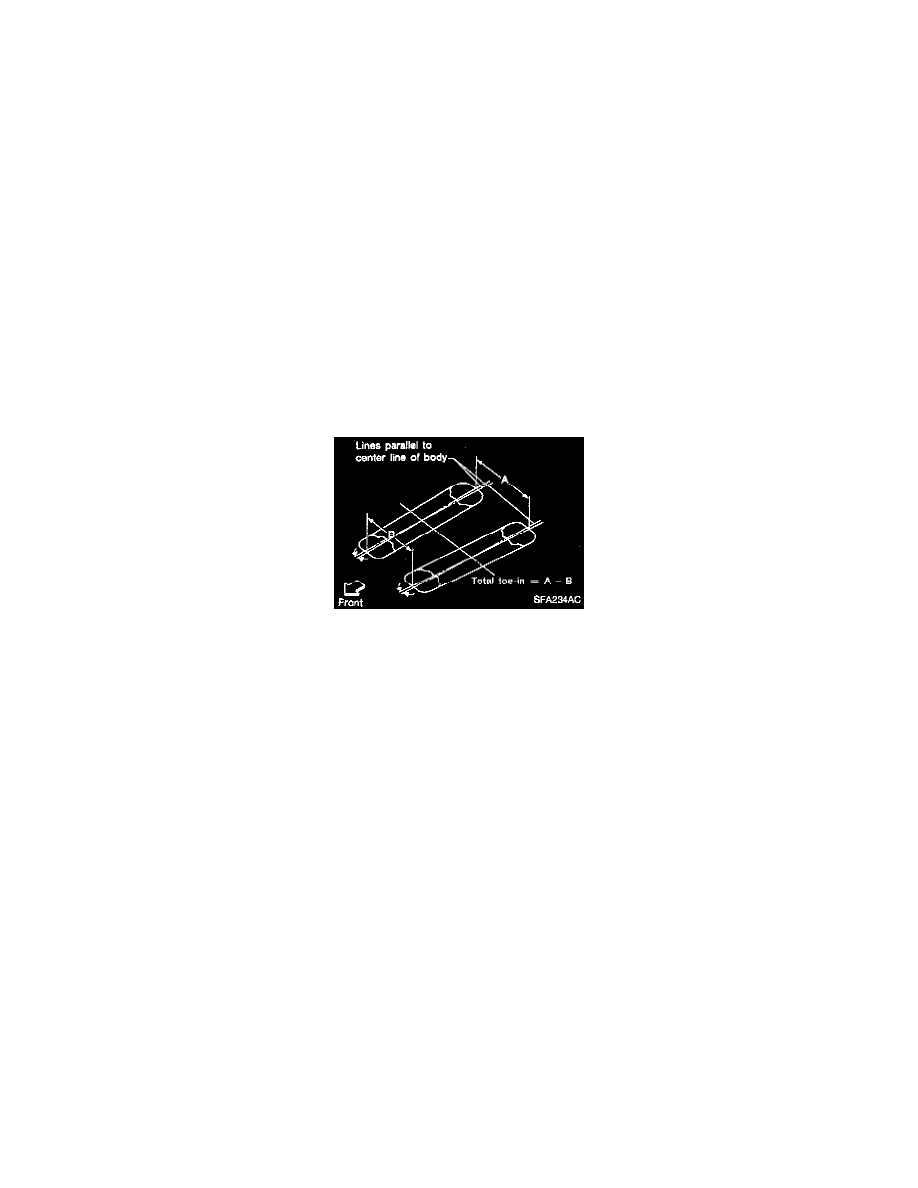

Distance (A - B)

Minimum: .........................................................................................................................................................................................  0 mm (0.00 inch)
Nominal: ...........................................................................................................................................................................................  1 mm (0.04 inch)
Maximum: .........................................................................................................................................................................................  2 mm (0.08 inch)

Wheel Turning Angle:

Inside:

Minimum ............................................................................................................................................................................................  32° 06' (32.10°)
Nominal ..............................................................................................................................................................................................  35° 06' (35.10°)
Maximum ............................................................................................................................................................................................  36° 06' (36.10°)

Outside (Full Turn) [1]:

Minimum ............................................................................................................................................................................................  26° 18' (26.30°)
Nominal ..............................................................................................................................................................................................  29° 18' (29.30°)
Maximum ............................................................................................................................................................................................  30° 18' (30.30°)

[1]: On power steering models, wheel turning force (at circumference of steering wheel) of 98 - 147 N (22 - 33 lbs.) with engine idle.
