Altima XE L4-2.4L (KA24DE) (1999)
Alignment: Specifications
Front Wheel Alignment
GENERAL SPECIFICATIONS
Camber
Minimum ..................................................................................................................................................................................................... -0°51' (-0.85°)
Nominal ....................................................................................................................................................................................................... -0°06' (-0.10°)
Maximum ....................................................................................................................................................................................................... 0°39' (0.65°)
Left And Right Difference ..................................................................................................................................................................... 45' (0.75°) or less
Caster:
Minimum ...................................................................................................................................................................................................... 1° 55' (1.92°)
Nominal ........................................................................................................................................................................................................ 2° 40' (2.67°)
Maximum ...................................................................................................................................................................................................... 3° 25' (3.42°)
Left And Right Difference ..................................................................................................................................................................... 45' (0.75°) or less
Kingpin Inclination:
Minimum .................................................................................................................................................................................................. 13° 20' (13.33°)
Nominal .................................................................................................................................................................................................... 14° 05' (14.08°)
Maximum .................................................................................................................................................................................................. 14° 50' (14.83°)
Total Toe-in:
Angle (Left + Right)
Minimum: ...................................................................................................................................................................................................... 0' (0.00°)
Nominal: ........................................................................................................................................................................................................ 6' (0.10°)
Maximum: ................................................................................................................................................................................................... 12' (0.20°)

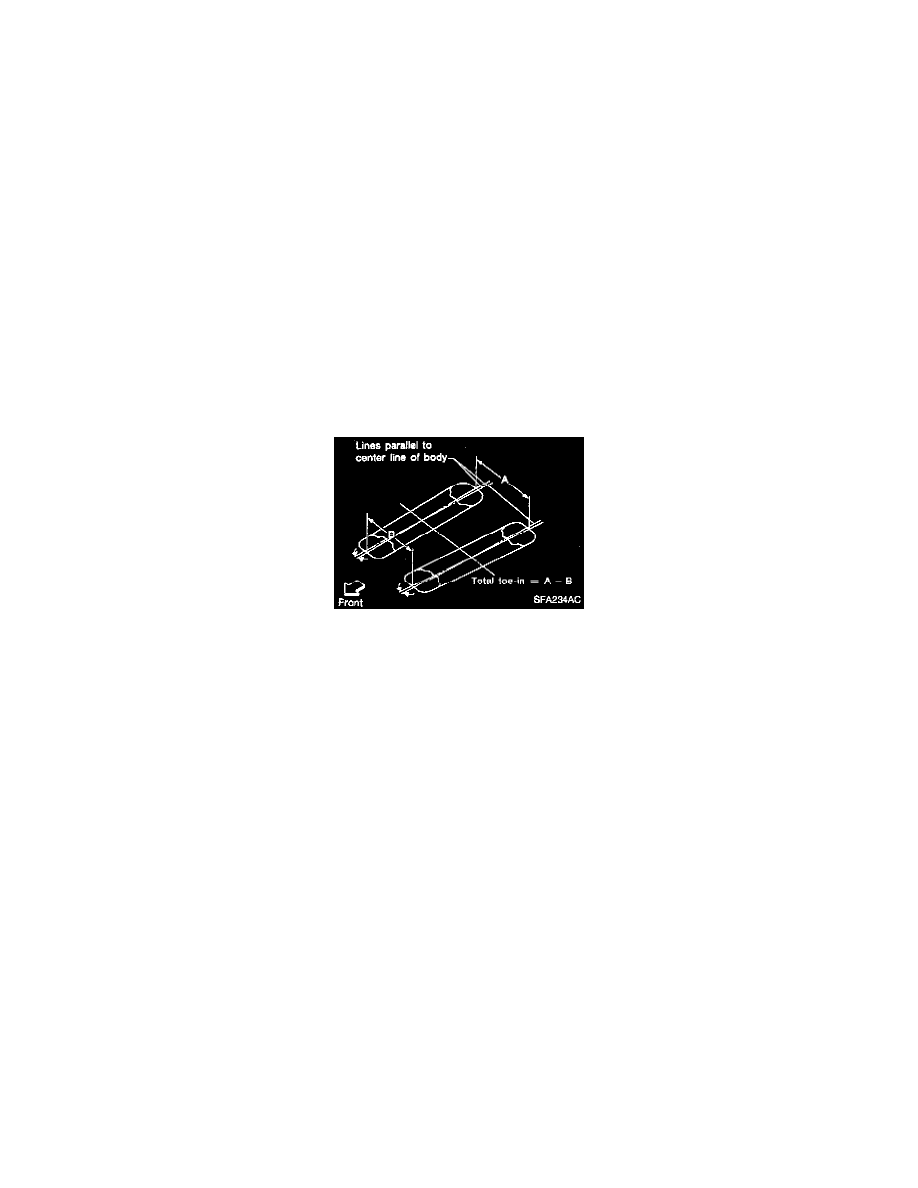

Distance (A - B)
Minimum: ......................................................................................................................................................................................... 0 mm (0.00 inch)
Nominal: ........................................................................................................................................................................................... 1 mm (0.04 inch)
Maximum: ......................................................................................................................................................................................... 2 mm (0.08 inch)
Wheel Turning Angle:
Inside:
Minimum ............................................................................................................................................................................................ 32° 06' (32.10°)
Nominal .............................................................................................................................................................................................. 35° 06' (35.10°)
Maximum ............................................................................................................................................................................................ 36° 06' (36.10°)
Outside (Full Turn) [1]:
Minimum ............................................................................................................................................................................................ 26° 18' (26.30°)
Nominal .............................................................................................................................................................................................. 29° 18' (29.30°)
Maximum ............................................................................................................................................................................................ 30° 18' (30.30°)
[1]: On power steering models, wheel turning force (at circumference of steering wheel) of 98 - 147 N (22 - 33 lbs.) with engine idle.
