Timing Belt: Diagrams (page 4 of 9)
- Make
- Nissan and Datsun
- Model
- Frontier 4WD
- Engine
- V6-3.3L (VG33E)
- Year
- 2003
- Section
- Timing Belt
MaintenanceDiagrams · page 4 of 9

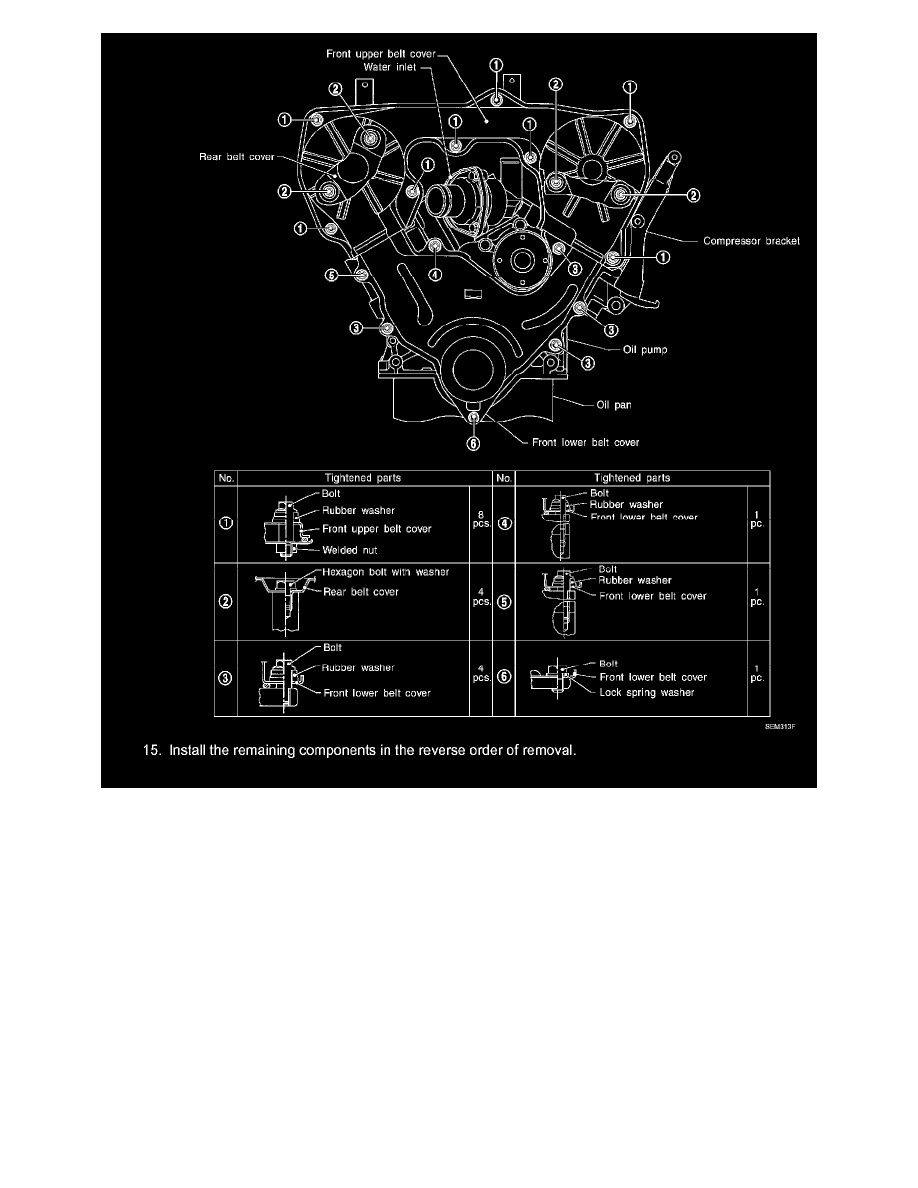

Timing Belt: Diagrams (page 4 of 9) – diagram from the Maintenance chapter of the Nissan Frontier 4WD V6-3.3L (VG33E) (2003) factory manual.
/Page-286003.png)
14. Install the lower and upper belt covers.
15. Install the remaining components in the reverse order of removal.
