Timing Belt: Diagrams (page 7 of 9)
- Make
- Nissan and Datsun
- Model
- Frontier 4WD
- Engine
- V6-3.3L (VG33E)
- Year
- 2003
- Section
- Timing Belt
MaintenanceDiagrams · page 7 of 9
/Page-287003.png)
^

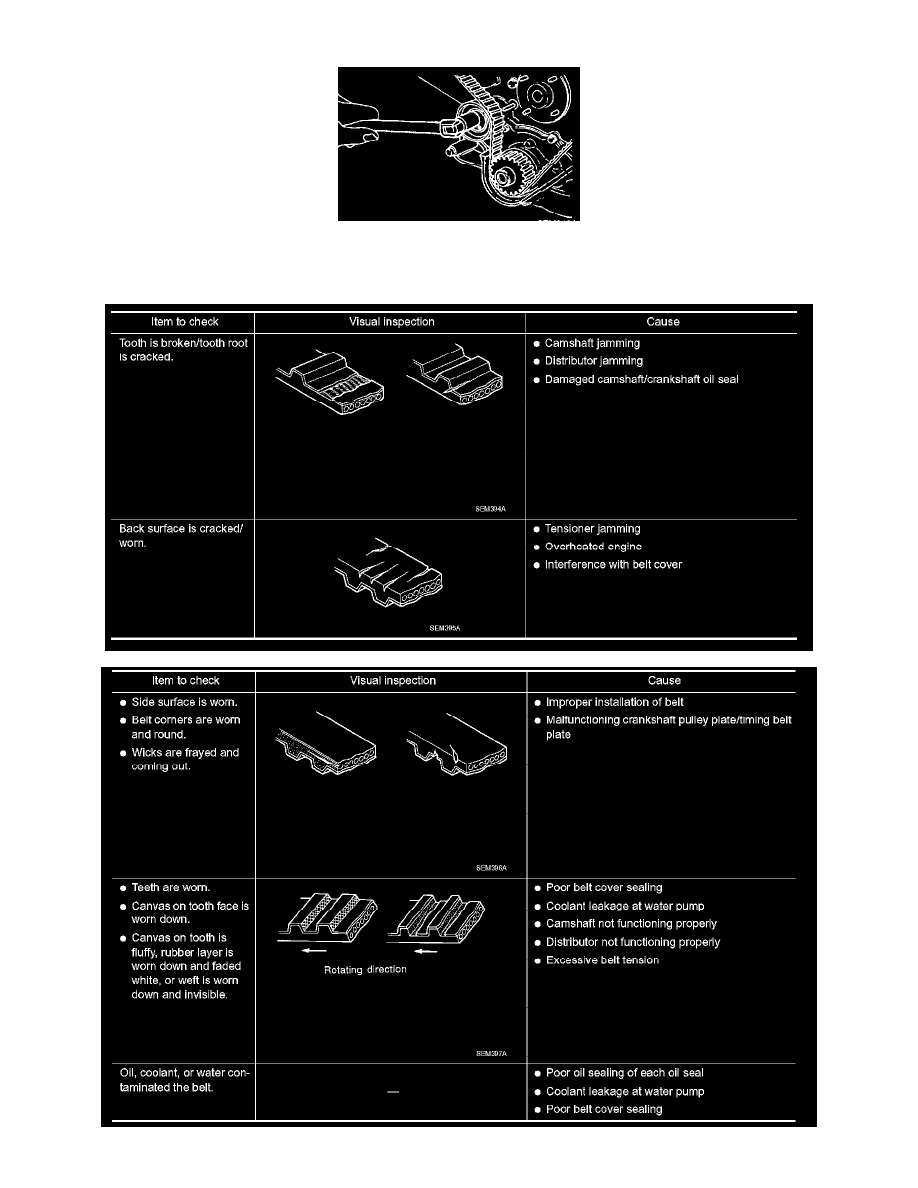

Temporarily install the crankshaft pulley bolt on the crankshaft, to rotate the crankshaft.
16. Loosen the timing belt tensioner nut, rotate the tensioner, then remove the timing belt.
Inspection
