Cayenne (9PA) V6-3.2L (2006)
/v6-3.2l/Page-396001.png)
Jump Starting: Service and Repair
External Power Connection, Jump Lead Starting
Information
NOTE: If the battery is flat, jump leads can be used together with the battery of another vehicle to start the car or to supply external power to the
vehicle.
Both batteries must be 12 V batteries.
The capacity (Ah) of the battery supplying the power must not be significantly lower than that of the flat battery.
WARNING:
Risk of damage and injury as a result of a short circuit.
-
Use only standard jump leads with a sufficiently wide cross section and fully insulated terminal clamps. Observe the cable manufacturer's
specifications.
-
Route the jump leads so that they cannot become entangled in moving parts in the engine compartment.
-
No contact is allowed between the vehicles, otherwise electricity could flow as soon as the positive terminal is connected.
The flat battery must be properly connected to the vehicle electrical system.

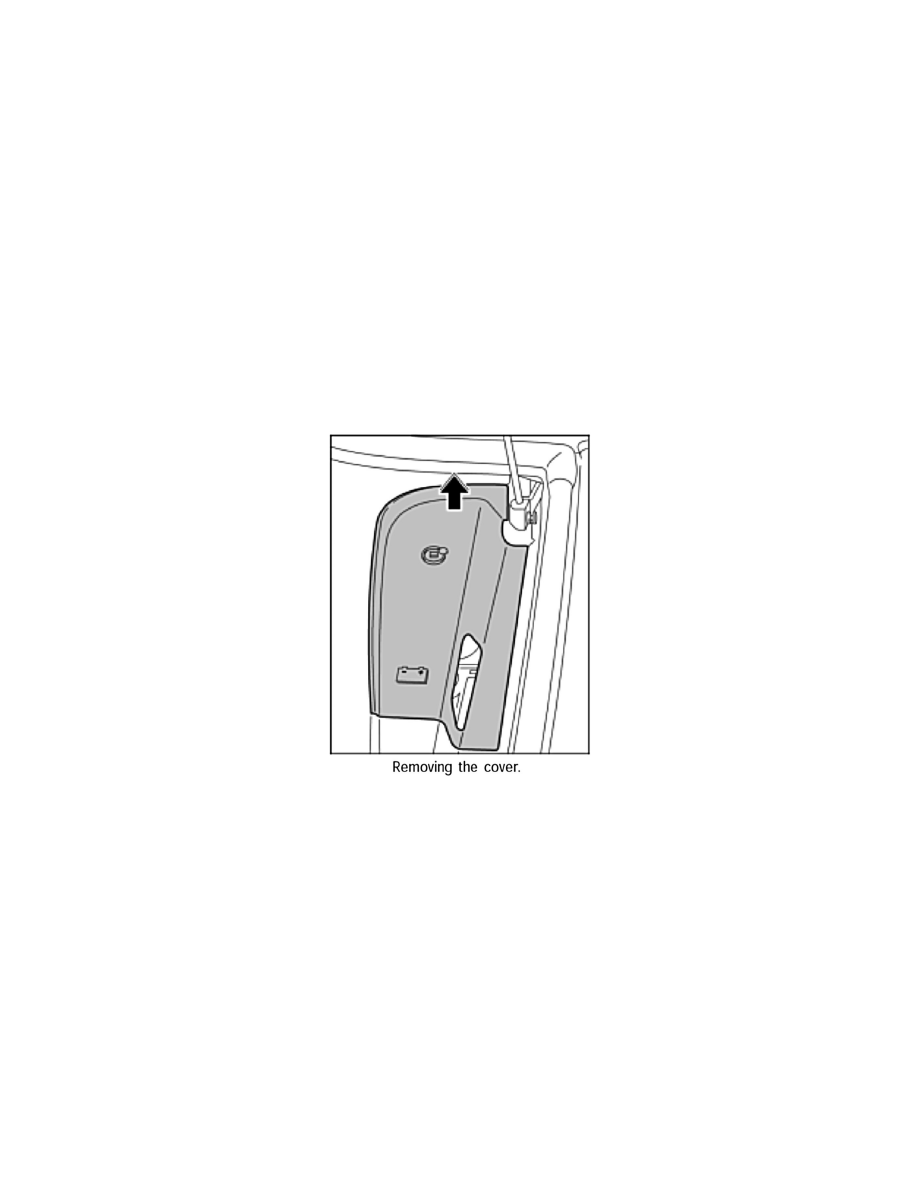

1. Remove cover for jump lead starting terminal.
2. Open protective cover on the positive terminal -+- for jump lead starting -arrow A-.
