BodySun roof

SUN ROOF

Service repair no - 76.82.44

Remove

  1. Remove headlining. See Interior trim components.

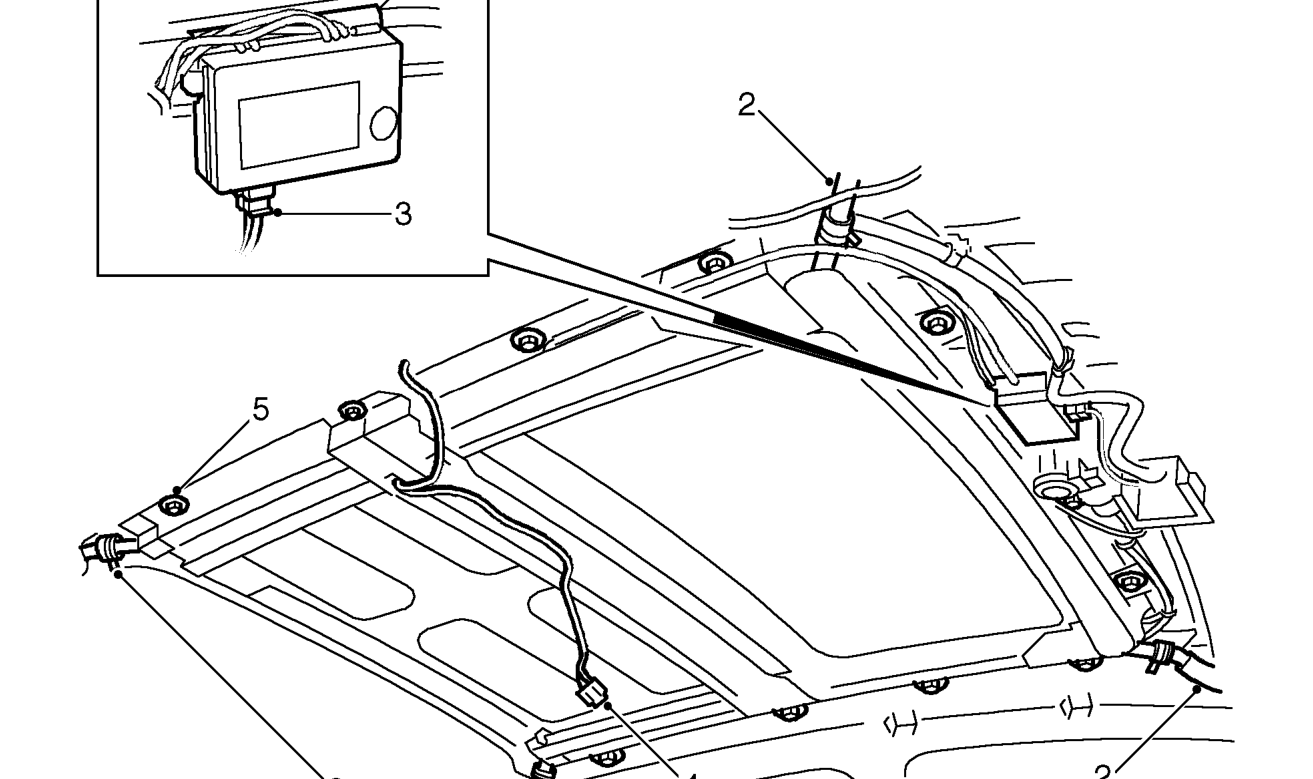

Sun roof – Remove headlining. See Interior trim components.
  1. Release 4 clips and disconnect drain tubes.
  2. Disconnect multiplug from sun roof control unit.
  3. Release interior lamp harness from sun roof tray.
  4. Remove 11 bolts securing sun roof assembly to roof and remove sun roof.

NOTE: Assistance may be required to remove sun roof assembly.

Refit

  1. Fit sun roof assembly and tighten bolts to 9 Nm.
  2. Secure interior lamp harness to sun roof tray.
  3. Connect multiplug to sun roof control unit.
  4. Connect drain tubes to sun roof and secure with clips.
  5. Fit headlining. See Interior trim components.
