SUN ROOF SUNSHADE

Service repair no - 76.82.03

Remove

  1. Remove sun roof glass. See this section.
  2. Close sunshade.

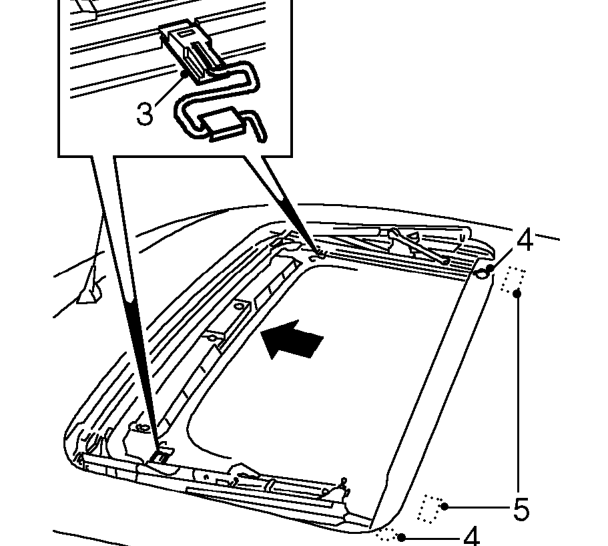

Sun roof sunshade – Close sunshade.
  1. Depress front sunshade plungers and release front of sunshade from sun roof frame.
  2. Remove 2 screws securing frame cross beam to gain access to rear plungers.
  3. Depress rear sunshade plungers.
  4. Remove sunshade from frame by pulling forwards and upwards.

Refit

  1. Fit sunshade to frame and secure all 4 plungers.

NOTE: Ensure plungers are fully engaged.

  1. Fit and tighten screws securing cross beam to frame.
  2. Fit sun roof glass. See this section.

SUN ROOF SWITCH

Service repair no - 76.82.59

Remove

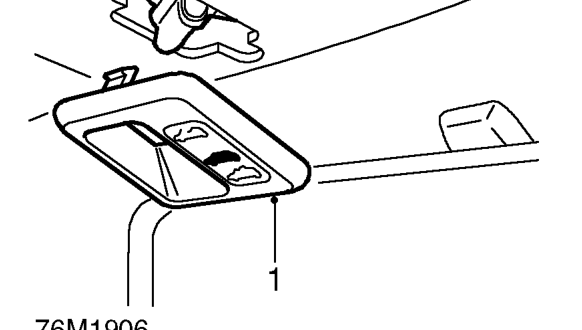

Sun roof switch – Service repair no - 76.82.59
  1. Remove finisher from switch.

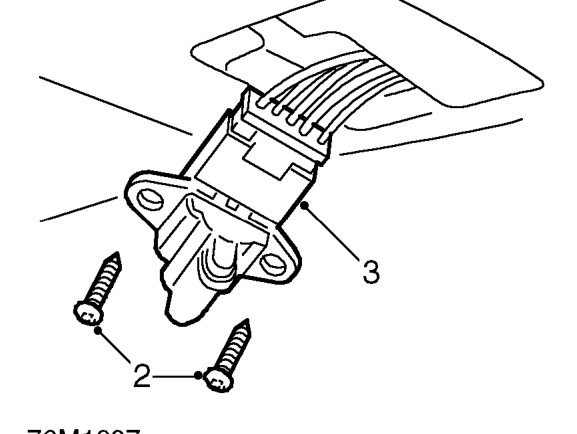

Sun roof switch – Remove finisher from switch.
  1. Remove 2 screws securing switch to roof.
  2. Release from roof and disconnect multiplug.
  3. Remove switch.

Refit

  1. Position switch to roof and connect multiplug.
  2. Fit switch to roof and secure with screws.
  3. Fit finisher to switch.
