Rover 200 Circuit Diagrams (1997 model year)02 · Engine management system
02 · Engine

Engine management system

Make
Rover
Model
200 Circuit Diagrams
Year
1997 model year
Section
Engine management system › Engine management system
Engine management systemEngine management system

ENGINE MANAGEMENT SYSTEM

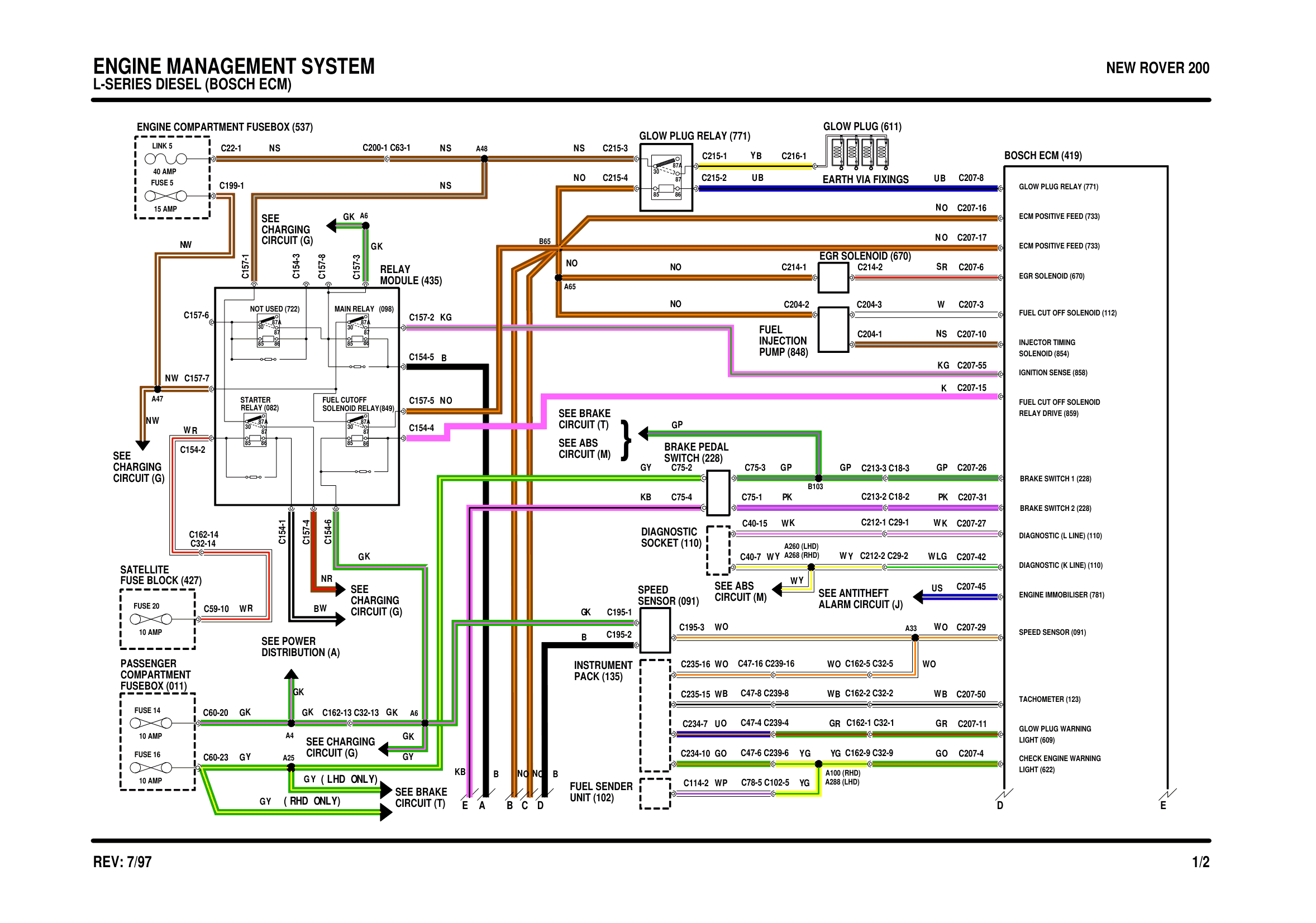

Engine Management System circuit diagram

Components on this diagram

  • BOSCH ECM (419)
  • CHECK ENGINE WARNING LIGHT (622)
  • ECM POSITIVE FEED (733)
  • EGR SOLENOID (670)
  • ENGINE COMPARTMENT FUSEBOX (537)
  • ENGINE IMMOBILISER (781)
  • FUEL CUT OFF SOLENOID (112)
  • FUEL CUT OFF SOLENOID RELAY DRIVE (859)
  • FUEL PUMP (848)
  • FUSE BLOCK (427)
  • GLOW PLUG (611)
  • GLOW PLUG RELAY (771)
  • GLOW PLUG WARNING LIGHT (609)
  • IGNITION SENSE (858)
  • INJECTOR TIMING SOLENOID (854)
  • MODULE (435)
  • NOT USED (722)
  • PACK (135)
  • PASSENGER FUSEBOX (011)
  • RELAY (082)
  • SOCKET (110)
  • SPEED SENSOR (091)
  • SWITCH (228)
  • TACHOMETER (123)
  • UNIT (102)
