Automatic gearboxDifferential oil seal

DIFFERENTIAL OIL SEAL

Service repair no - 54.10.18

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front road wheel.
  2. Disconnect multiplug from starter inhibitor/reverse switch.
  3. Position container to collect fluid loss from gearbox.
Differential oil seal – Position container to collect fluid loss from gearbox.

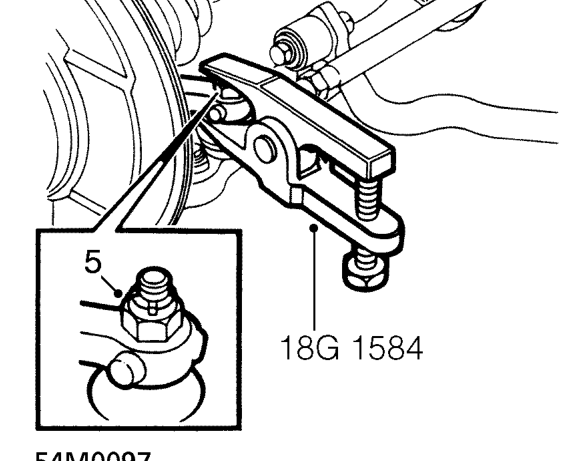

  1. Remove nut securing steering rack track rod end to front hub.
  2. Break taper joint using tool 18G 1584.
  3. Disconnect track rod end from front hub.
Differential oil seal – Disconnect track rod end from front hub.

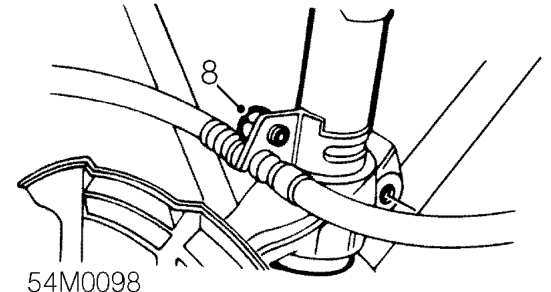

  1. Remove bolt securing brake hose to front damper.
Differential oil seal – Remove bolt securing brake hose to front damper.

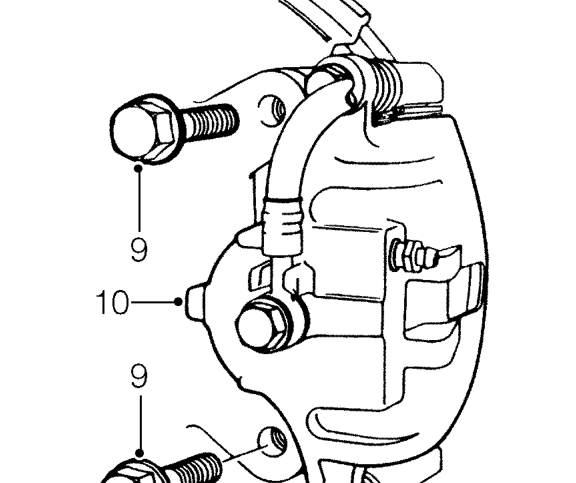

  1. Remove 2 bolts and collect washers securing brake caliper to front hub.
  2. Release brake caliper from front hub and tie aside.

CAUTION: Do not allow caliper to hang on brake hose.
