Cooling system - K SeriesCoolant expansion tank

COOLANT EXPANSION TANK

Service repair no - 26.15.01

Remove

  1. Position container to collect fluid loss from expansion tank.

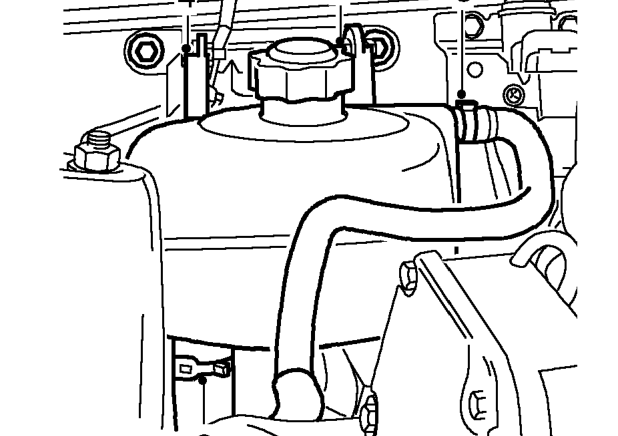

Coolant expansion tank – Position container to collect fluid loss from expansion tank.
  1. Loosen clip and disconnect hose from expansion tank.
  2. Release clip and disconnect coolant feed hose from expansion tank.
  3. Remove 2 bolts securing expansion tank to body.
  4. Release expansion tank from body and allow coolant to drain.
  5. Remove coolant expansion tank.

Refit

  1. Position coolant expansion tank.
  2. Fit 2 bolts securing expansion tank to body and tighten to 5 Nm.
  3. Connect coolant feed hose to expansion tank and tighten clip.
  4. Connect hose to expansion tank and tighten clip.
  5. Top-up cooling system. See MAINTENANCE.
  6. Remove container positioned to catch fluid loss.

RADIATOR COOLING FAN

Service repair no - 26.25.22

Remove

  1. Disconnect battery earth lead.

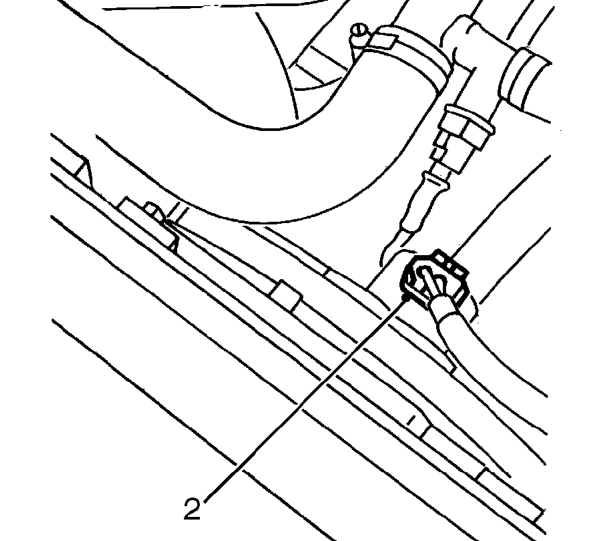

Radiator cooling fan – Disconnect battery earth lead.
  1. Disconnect multiplug from radiator cooling fan.
  2. Release radiator top hose from clip on cooling fan housing.
