RADIATOR - ’K16’ WITH AIR CONDITIONING

Service repair no - 26.40.01.20

Remove

  1. Drain cooling system. See Adjustments.
  2. Remove radiator cooling fan. See this section.
Radiator - ’k16’ with air conditioning – Remove radiator cooling fan. See this section.

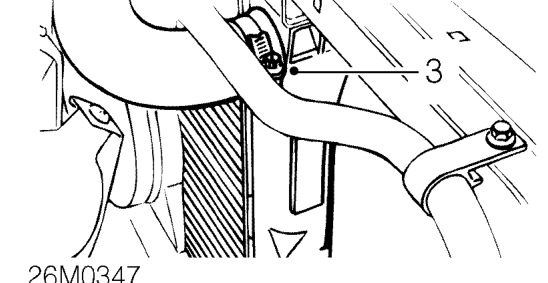

  1. Loosen clip and disconnect top hose from radiator.
Radiator - ’k16’ with air conditioning – Loosen clip and disconnect top hose from radiator.

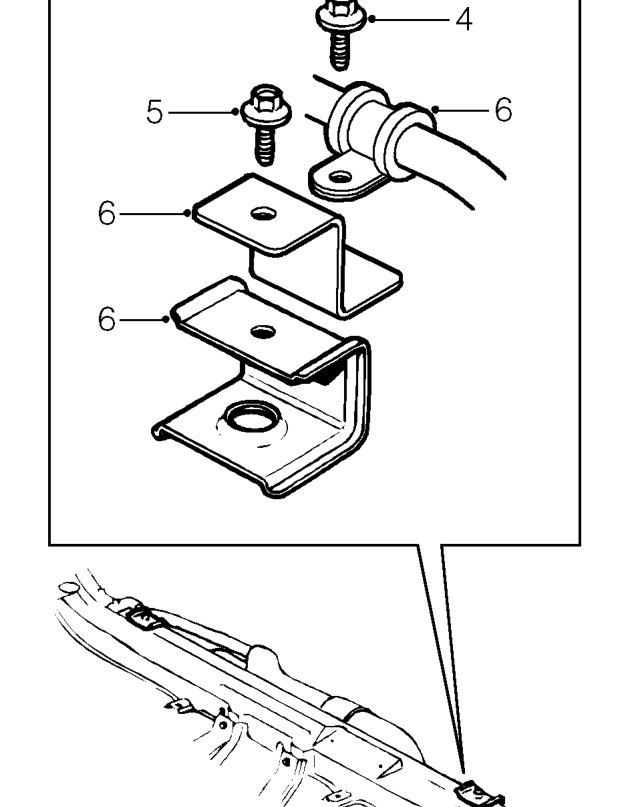

  1. Remove bolt securing air conditioning pipe to mounting bracket.
  2. Remove 2 bolts securing radiator top mounting brackets to bonnet locking platform.
  3. Remove 2 radiator top mounting brackets and air conditioning pipe bracket.
  4. Remove radiator by lowering to floor. Do not carry out further dismantling if component is removed for access only.
Radiator - ’k16’ with air conditioning – Remove radiator by lowering to floor. Do not carry out further dismantling if component is

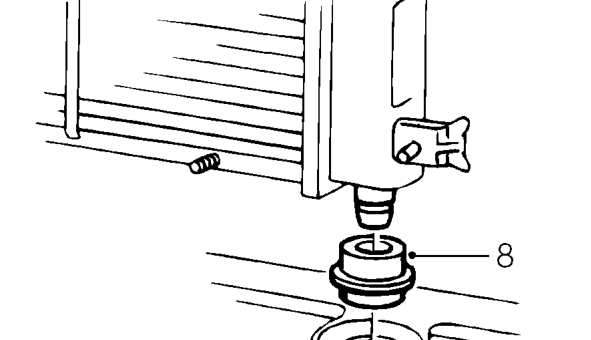

  1. Remove 2 lower mounting rubbers from radiator.
  2. Fit lower mounting rubbers to new radiator.

Refit

  1. Position radiator and locate on lower mountings.
  2. Fit top mounting brackets and air conditioning pipe bracket to radiator.
  3. Fit bolts securing radiator top mounting bracket to bonnet locking platform and tighten to 9 Nm.
  4. Connect top hose to radiator and tighten clip.
  5. Fit bolt securing air conditioning pipe to mounting bracket and tighten to 6 Nm.
  6. Fit radiator cooling fan. See this section.
  7. Refill cooling system. See Adjustments.
