Cooling system components (Cooling system - L Series)

Make

Rover

Model

200 Workshop Manual

Year

1995–1999

Section

Description and operation › Cooling system components

Cooling system - L SeriesCooling system components

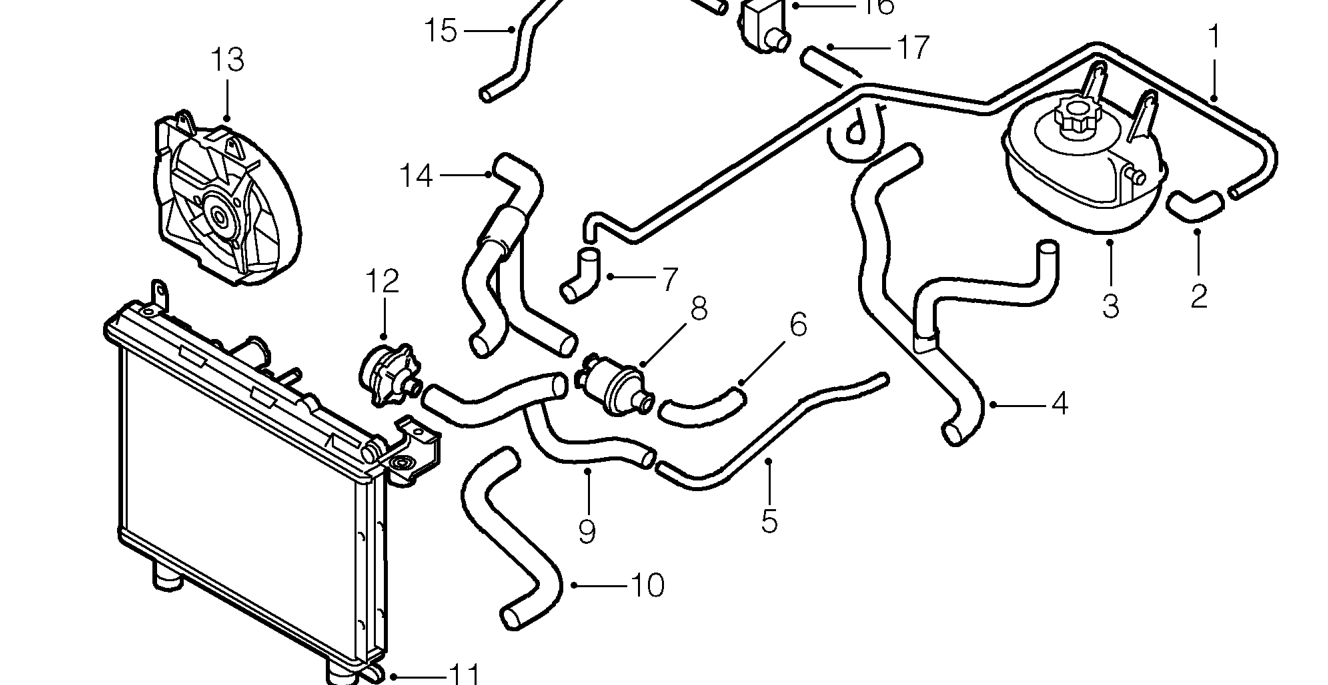

COOLING SYSTEM COMPONENTS

1. Coolant expansion pipe
2. Elbow - expansion tank to expansion pipe
3. Expansion tank
4. Expansion tank to coolant rail
5. Coolant rail
6. Hose - oil cooler to thermostat housing
7. Pipe - expansion pipe to radiator
8. Thermostat housing
9. Hose - coolant pump to thermostat housing
10. Bottom hose
11. Radiator
12. Coolant pump
13. Cooling fan and cowl
14. Top hose
15. Hose - engine to heater valve
16. Heater temperature control valve
17. Hose - heater valve to heater

14 Engine
