Drive shaft damper

Refit

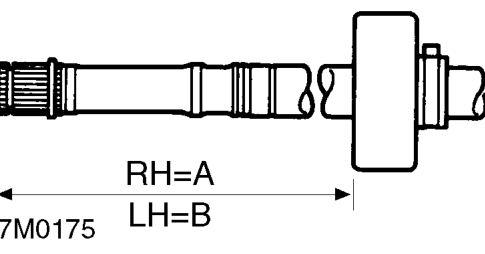

1. Measure along shaft for fitting of the new damper. 1.4 Models: R.H. shaft ’A’= 405 mm - 411 mm L.H. shaft ’B’= 148 mm - 154 mm
2. Mark the shaft for fitting position.
3. Lubricate shaft to aid fitting of damper.
4. Position new clip on shaft.
5. Fit new damper to shaft with flange facing inner joint.

NOTE: Dampers for L.H. and R.H. shafts are not interchangeable.

6. Fit clip around damper flange and secure.
7. Clean lubricant from shaft.
8. Fit drive shaft outer joint. See this section.
9. Remove stand(s) and lower vehicle.

DRIVE SHAFT DAMPER

Service repair no - 47.10.33

The procedure for renewing the drive shaft damper is identical to that for renewing the drive shaft and inner joint. Refer to Drive shaft and inner joint for further details. See this section.
