Throttle cable - models without intercooler (Engine management system - EDC)

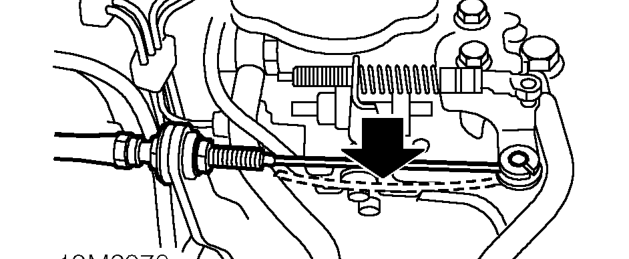

THROTTLE CABLE - MODELS WITHOUT INTERCOOLER

Service repair no - 19.20.05

Check

1. With throttle lever resting on its stop screw, the correct amount of cable free play is equivalent to a 4 mm deflection in the cable.

Adjust

1. Loosen locknut and tighten/loosen adjusting nut until correct free play is obtained.Tighten locknut.
2. Depress throttle pedal fully.
3. Check throttle lever contacts maximum speed stop screw.
4. Release pedal and check throttle lever returns fully.

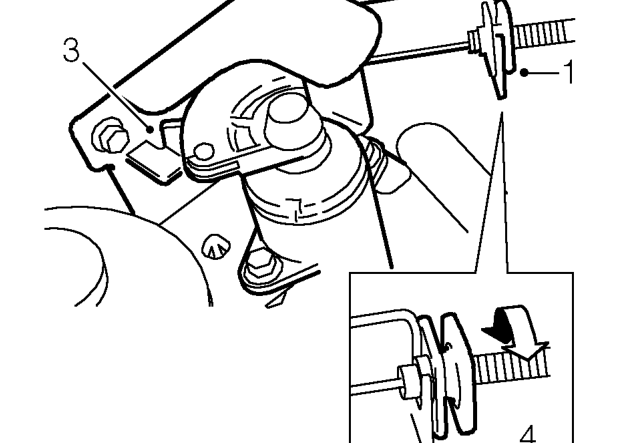

THROTTLE CABLE - MODELS WITH INTERCOOLER

Service repair no - 19.20.05

NOTE: Before adjusting cable, ensure that cable is correctly routed and located.

Adjust

1. Release cable adjusting nut from abutment bracket.
2. Position outer cable to abutment bracket so that adjusting nut contacts top of the abutment bracket.
3. Hold throttle cam in fully closed position, ensure throttle cam contacts its stop.
4. Rotate cable adjusting nut until all slack is taken out of inner cable. Ensure throttle does not open.
5. Locate throttle cable adjusting nut in abutment bracket.
6. Operate throttle pedal and ensure that full throttle pedal movement is available.
