Engine management system - EDCAir cleaner

AIR CLEANER

Service repair no - 19.10.01

Remove

  1. Remove battery. See ELECTRICAL, Repairs.

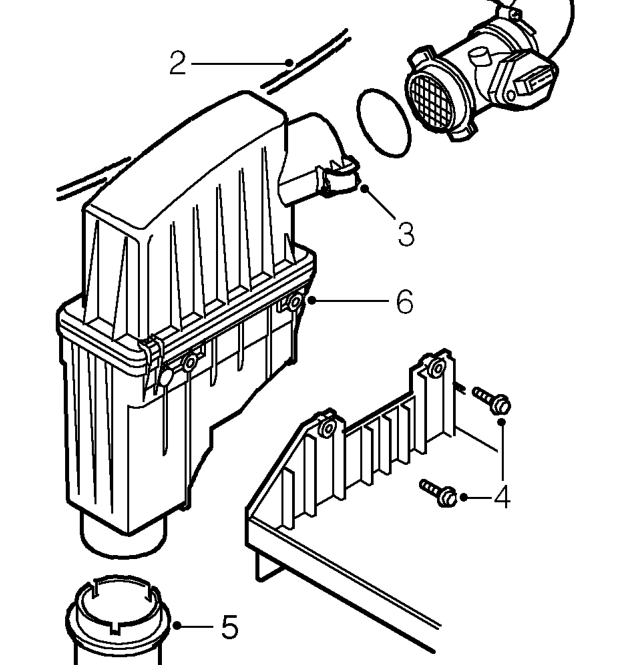

Air cleaner – Remove battery. See ELECTRICAL, Repairs.
  1. Release coolant pipe from clips on air cleaner housing.
  2. Release 2 clips and disconnect MAF sensor from air cleaner.
  3. Remove 2 bolts securing air cleaner to battery tray.
  4. Release air intake hose from bottom of air cleaner.
  5. Remove air cleaner.

Refit

  1. Connect air intake hose to bottom of air cleaner.
  2. Position air cleaner to battery tray and secure with bolts.

NOTE: Ensure bottom of air cleaner is located on peg.

  1. Connect MAF sensor and secure with clips.
  2. Secure coolant pipe to clips on air cleaner.
  3. Fit battery. See ELECTRICAL, Repairs.
