MASS AIR FLOW (MAF) SENSOR

Service repair no - 19.22.25

Remove

  1. Disconnect battery earth lead.

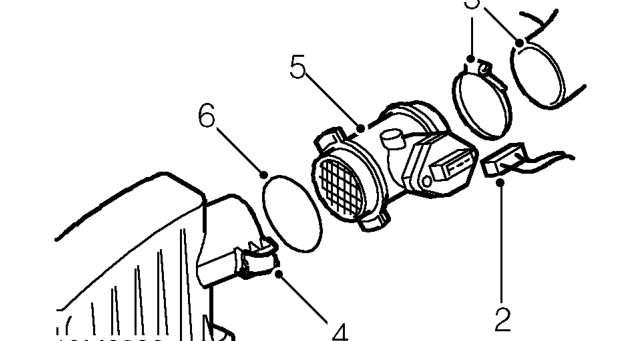

Mass air flow (maf) sensor – Disconnect battery earth lead.
  1. Release clip and disconnect multiplug from MAF sensor.
  2. Loosen clip securing air intake hose to MAF sensor and disconnect hose.
  3. Release 2 clips securing MAF sensor to air cleaner.
  4. Release MAF sensor from air cleaner.
  5. Remove MAF sensor.
  6. Remove and discard ’O’ ring.

Refit

  1. Fit new ’O’ ring to MAF sensor.
  2. Fit MAF sensor to air cleaner, secure with clips.
  3. Connect intake hose to MAF sensor and tighten clip.
  4. Connect multiplug to MAF sensor.
  5. Connect battery earth lead.

AIR INTAKE PIPE

Service repair no - 19.42.28

Remove

  1. Disconnect battery earth lead.

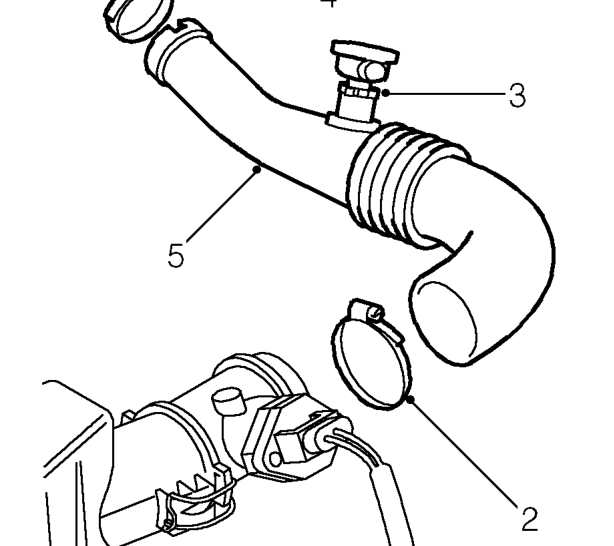

Air intake pipe – Disconnect battery earth lead.
  1. Loosen clip and disconnect pipe from MAF sensor.
  2. Loosen clip and disconnect crankcase pressure limiter valve from pipe.
  3. Loosen clip and disconnect pipe from turbocharger.
  4. Remove air intake pipe.

Refit

  1. Connect air intake pipe to turbocharger and tighten clip.
  2. Connect pipe to MAF sensor and tighten clip.
  3. Connect crankcase pressure limiter valve to and tighten clip.
  4. Connect battery earth lead.
