MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

Service repair no - 18.30.56

Remove

  1. Disconnect battery earth lead.

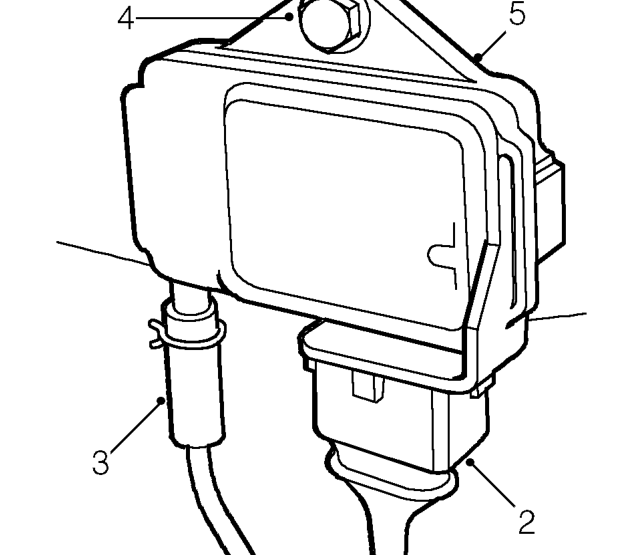

Manifold absolute pressure (map) sensor – Disconnect battery earth lead.
  1. Disconnect multiplug from MAP sensor.
  2. Release clip and disconnect boost pressure sensing pipe from MAP sensor.
  3. Remove bolt securing MAP sensor to mounting bracket.
  4. Remove MAP sensor.

Refit

  1. Position MAP sensor to mounting bracket, fit bolt and tighten to 9 Nm.
  2. Connect boost pressure sensing pipe to MAP sensor and secure with clip.
  3. Connect multiplug to MAP sensor.
  4. Connect battery earth lead.

ENGINE MANAGEMENT RELAY MODULE

Service repair no - 18.30.71

The engine management relay module contains the following relays: Main relay Starter relay FIP relay

Remove

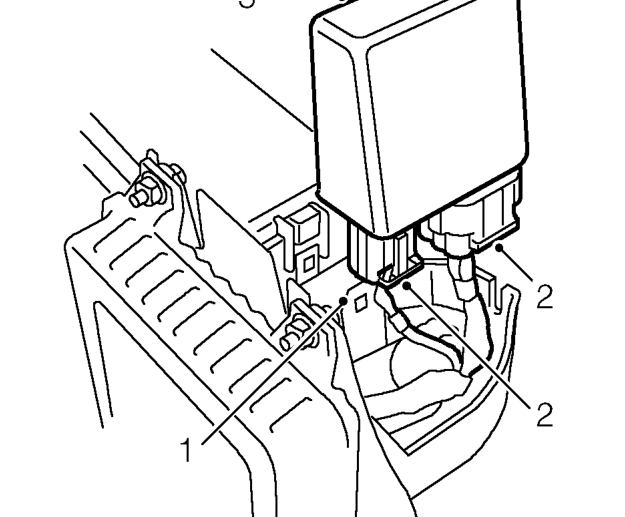

Engine management relay module – The engine management relay module contains the following relays: Main relay Starter relay
  1. Release relay module from mounting bracket.
  2. Disconnect 2 multiplugs from relay module.
  3. Remove relay module.

Refit

  1. Position relay module and connect 2 multiplugs. Ensure multiplugs are correctly engaged.
  2. Secure relay module to mounting bracket.
