INTERCOOLER - MODELS WITHOUT AIR CONDITIONING

Service repair no - 19.42.15

Remove

  1. Remove radiator. See COOLING SYSTEM - ’L’ SERIES, Adjustments.

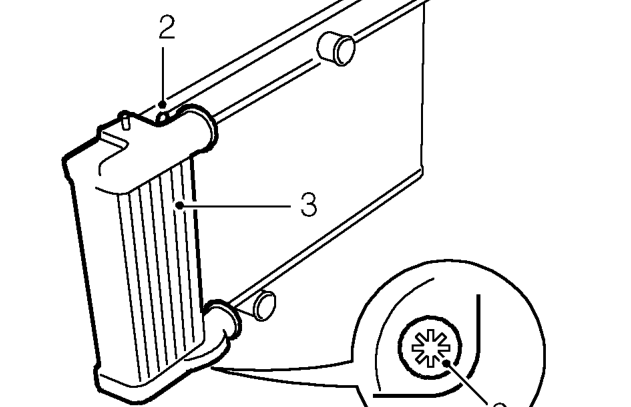

Intercooler - models without air conditioning – Remove radiator. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
  1. Remove 2 TX40 bolts and nuts securing intercooler to radiator.
  2. Remove intercooler from radiator.

Refit

  1. Position intercooler to radiator, fit Torx bolts and nuts and tighten to 25 Nm.
  2. Fit radiator. See COOLING SYSTEM - ’L’ SERIES, Adjustments.

INTERCOOLER - MODELS WITH AIR CONDITIONING

Service repair no - 19.42.15.20

Remove

  1. Remove front bumper. See BODY, Exterior fittings.
  2. Remove air cleaner. See this section.

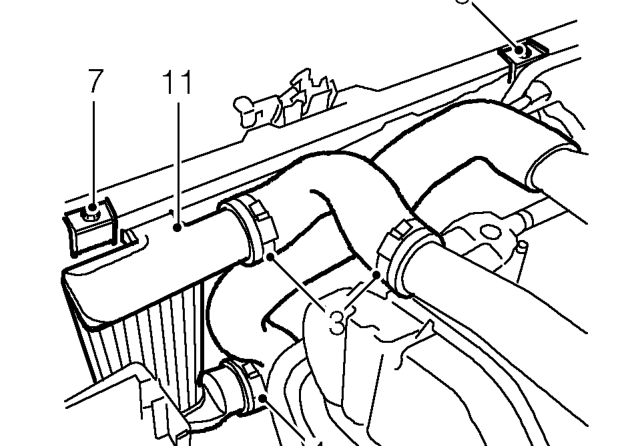

Intercooler - models with air conditioning – Remove air cleaner. See this section.
  1. Loosen 2 clips securing intercooler top hose to intercooler and turbocharger pipe. Remove hose.
  2. Release clip securing bottom hose to intercooler.
  3. Release hose from intercooler and position aside.
  4. Remove bolt securing radiator top mounting bracket to bonnet locking platform.
  5. Remove bolt securing intercooler top mounting bracket to bonnet locking platform and remove bracket.
  6. Remove top Torx screw and nut securing intercooler to radiator.
