BONNET ALIGNMENT

Service repair no - 76.16.02

Adjust

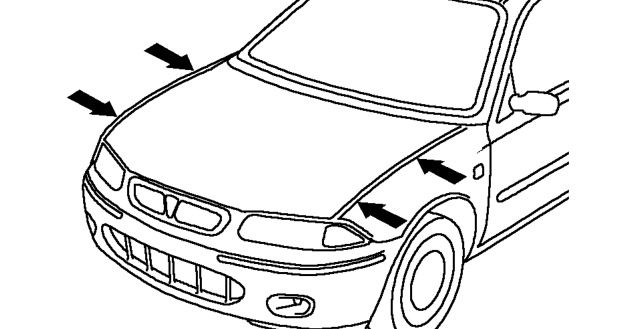

Bonnet alignment – Service repair no - 76.16.02
  1. Check alignment of bonnet against both wings.

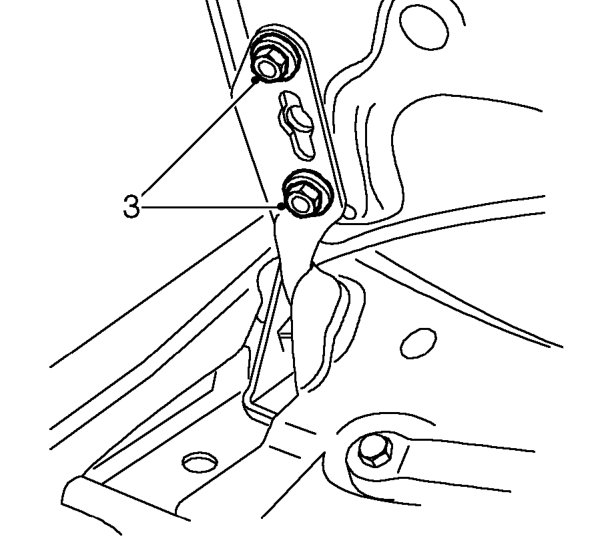

Bonnet alignment – Check alignment of bonnet against both wings.
  1. Open bonnet and mark outline of hinges.
  2. Loosen 4 bolts and adjust position of bonnet.
  3. Tighten bolts to 9 Nm.
  4. Close bonnet and check alignment against both wings.
  5. Open bonnet and re-adjust bonnet position if necessary.
  6. Close bonnet and check alignment against both wings.

WHEEL ARCH LINER

Service repair no - 76.10.48

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

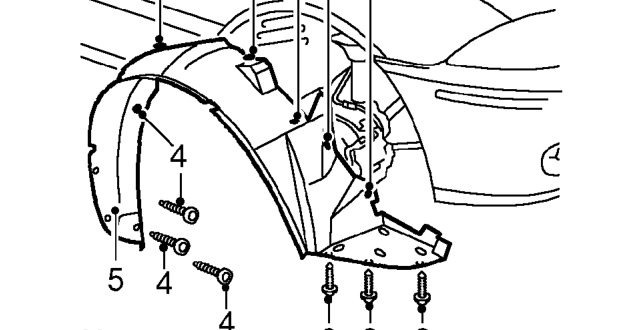

Wheel arch liner – Remove road wheel(s).
  1. Remove 3 screws securing wheel arch liner to front bumper.
  2. Remove 3 screws and 6 scrivets securing liner to wheel arch.
  3. Remove wheel arch liner.

Refit

  1. Fit liner to wheel arch.
  2. Fit and tighten screws and scrivets securing liner to wheel arch.
  3. Fit and tighten screws securing liner to front bumper.
  4. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  5. Remove stand(s) and lower vehicle.
